Basadure C15

MAIN DIMENSIONS
Lengthoverall                      15.55 m
Breadthoverall                    6.70 m
Moulded draft                     1.50 m
Displacement                      30.00 t
PROPULSION AND POWER
 MainEngines                       2 x CUMMINS QSC 8.3; 442kW@3000 rpm
Propellers                              2 x 4 blade (fixedpitch)
AuxiliaryEngines               1 x  CUMMINS ONAN 11kW
LOAD CAPACITY
Passengers                          50
Deadweight                        8 t
Maximumload                   10 t
SERVICE PERFORMANCE
 Top Speed                             @100 RPM   25knots
CruisingSpeed                    @90 RPM     22knots
Range                                        400 NM

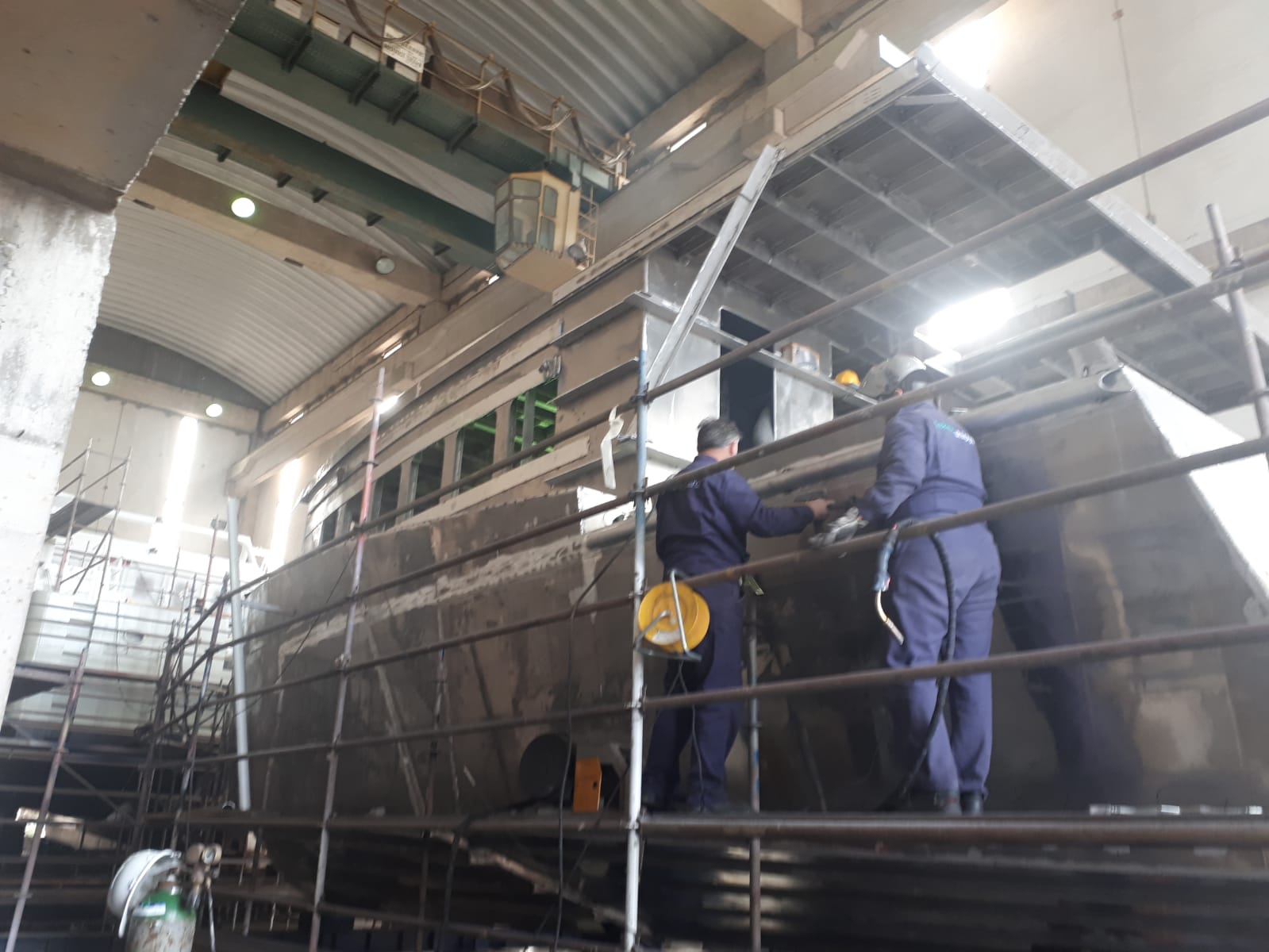

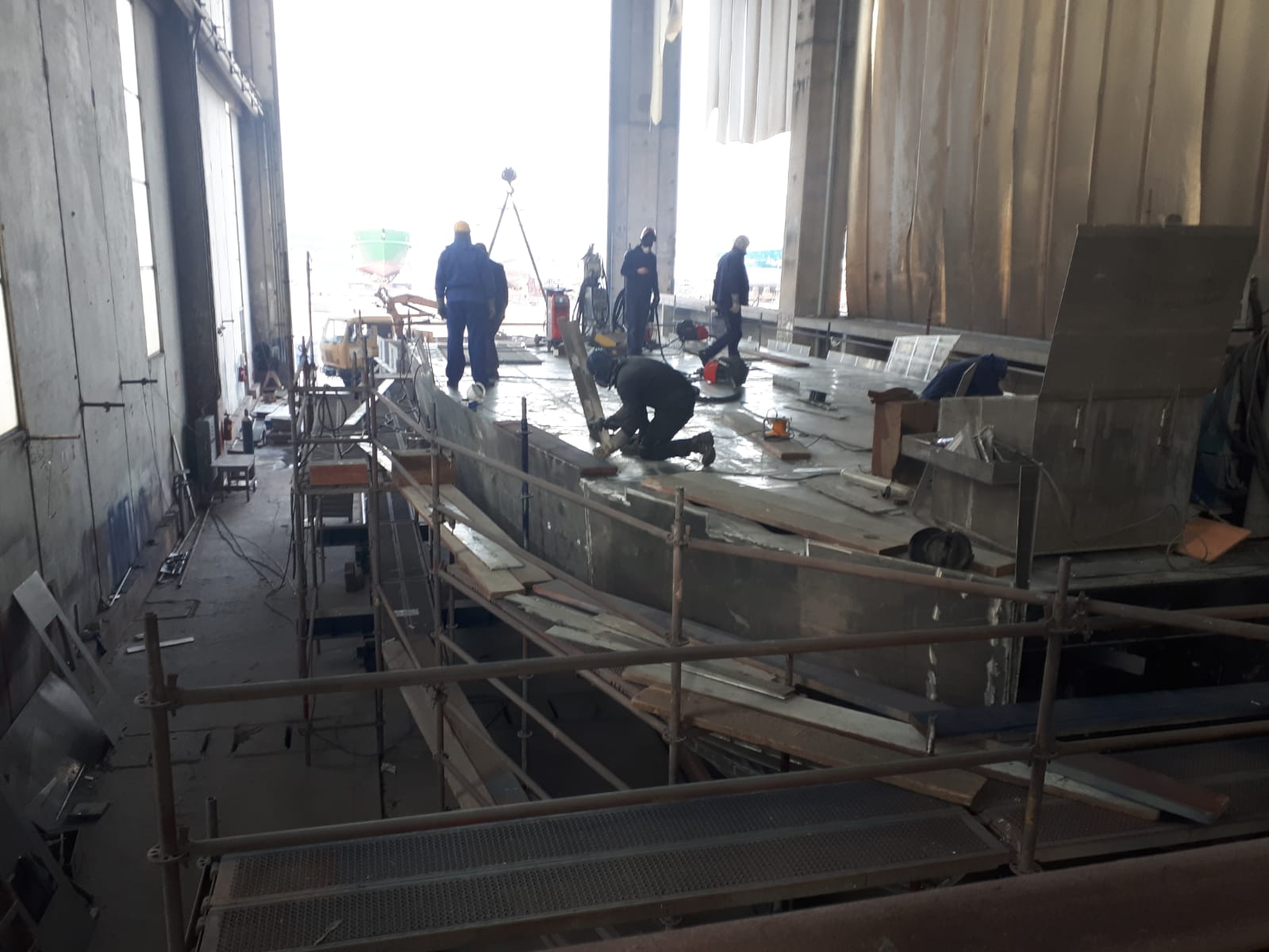

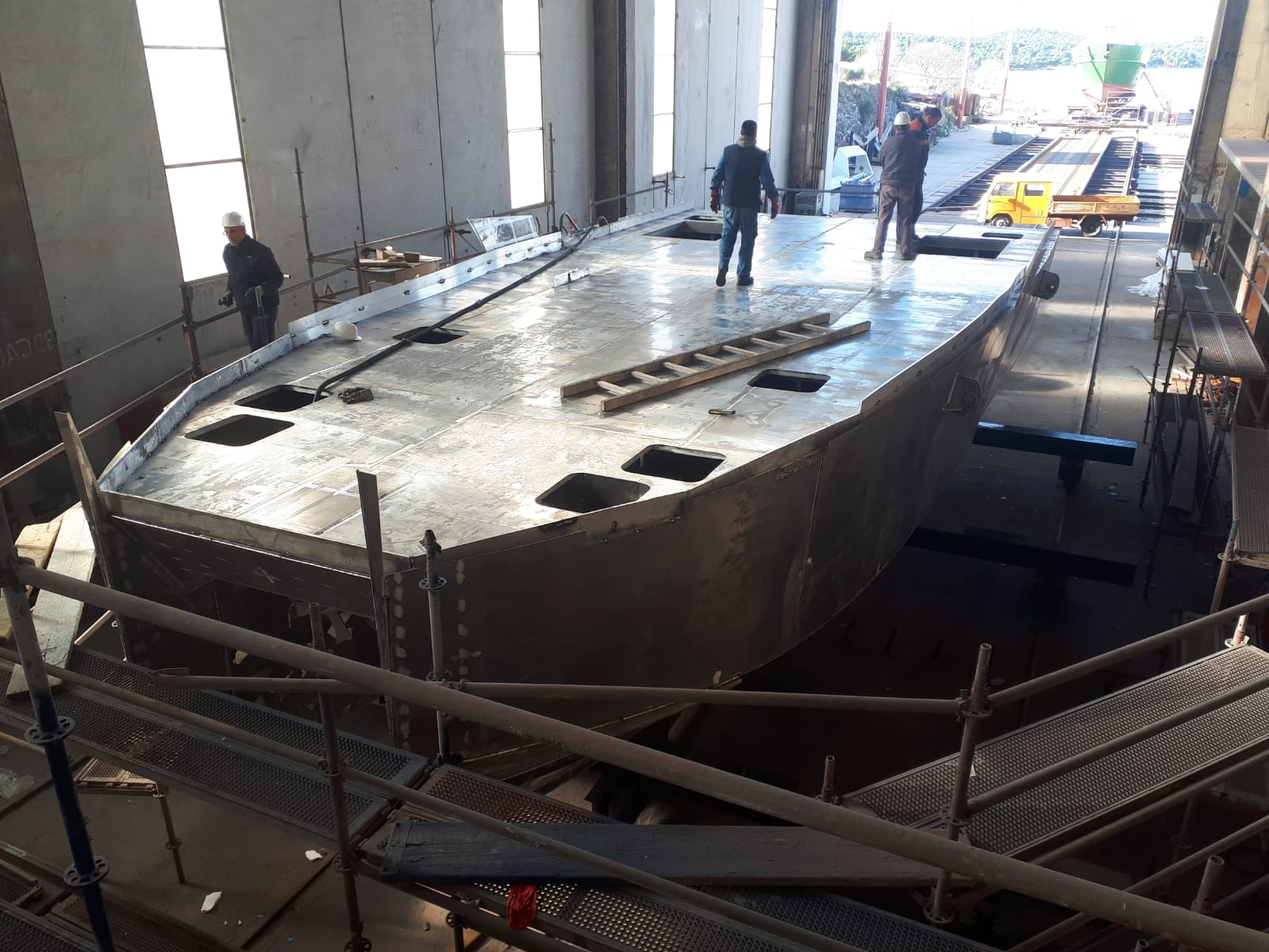

CONSTRUCTION

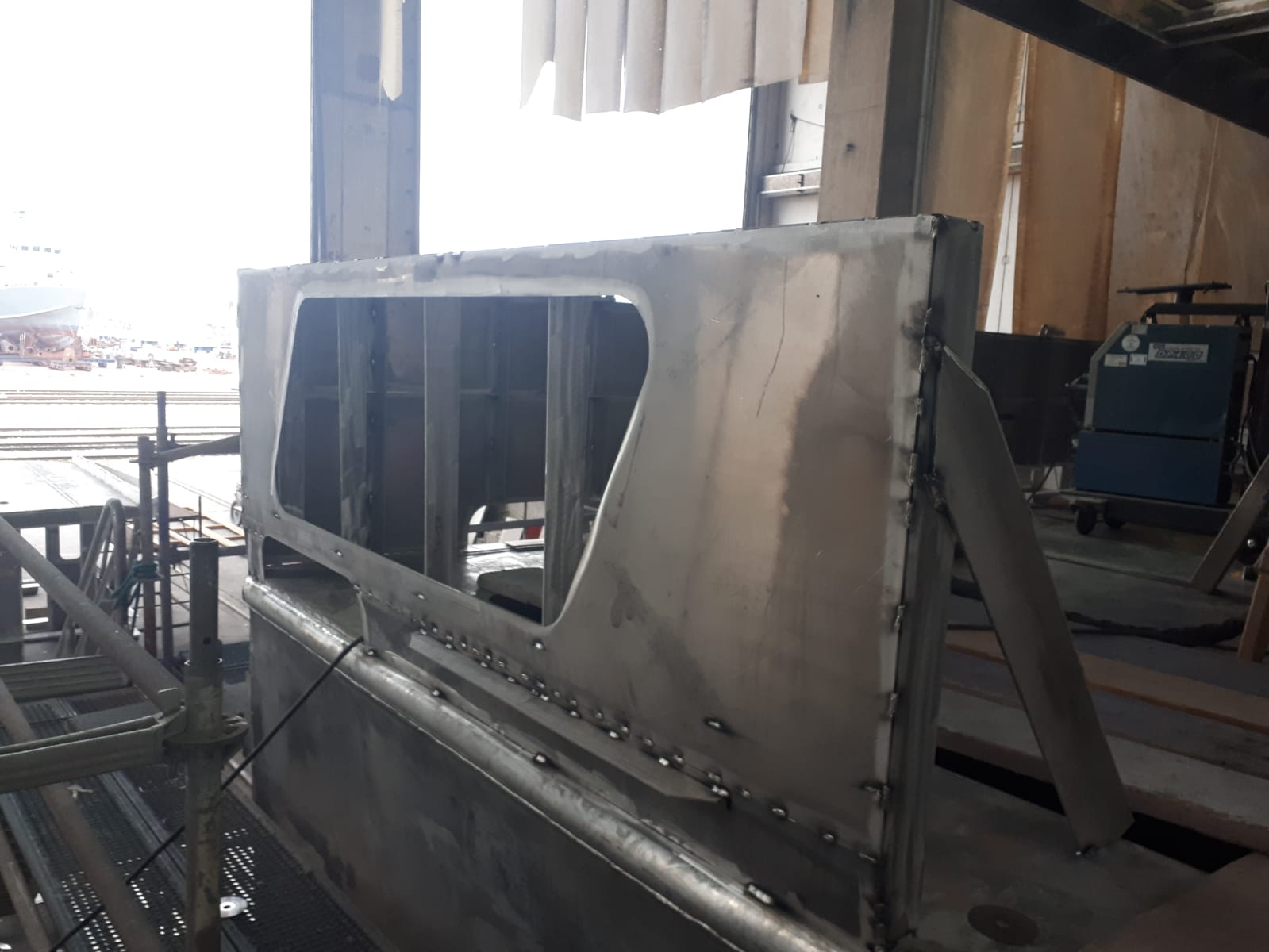

 Plates/profiles                     5083/6082                series aluminium alloy
CLASSIFICATION
 Design category                  IMO CRS C6 6 50A1+HULL+M1 AUT3
CAPACITY ARRANGEMENT
 Fuel tank                                   2 x 600 litres
Fresh water tank                   1 x 500 litres
Black water tank                   1 x 500 litres

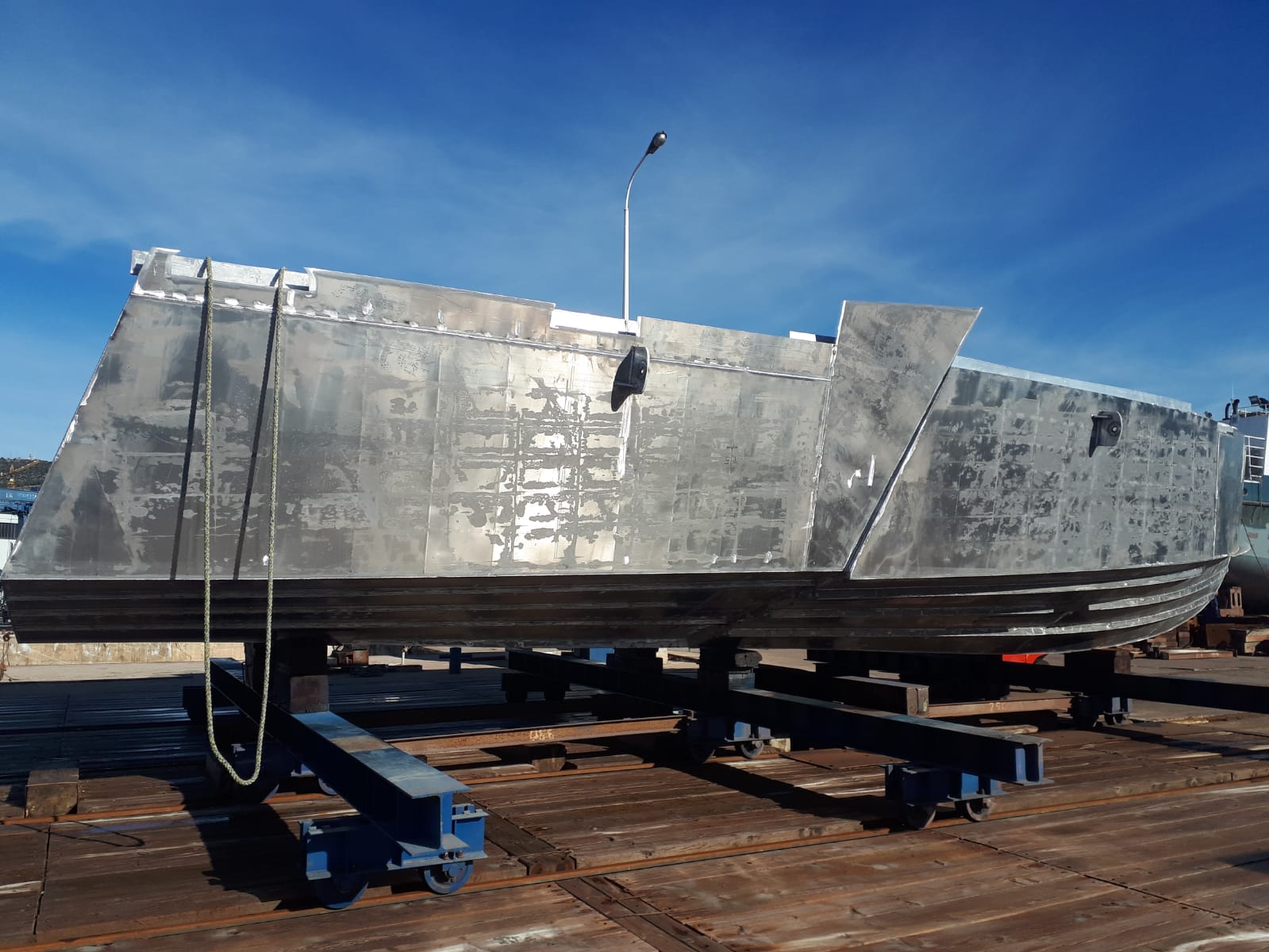

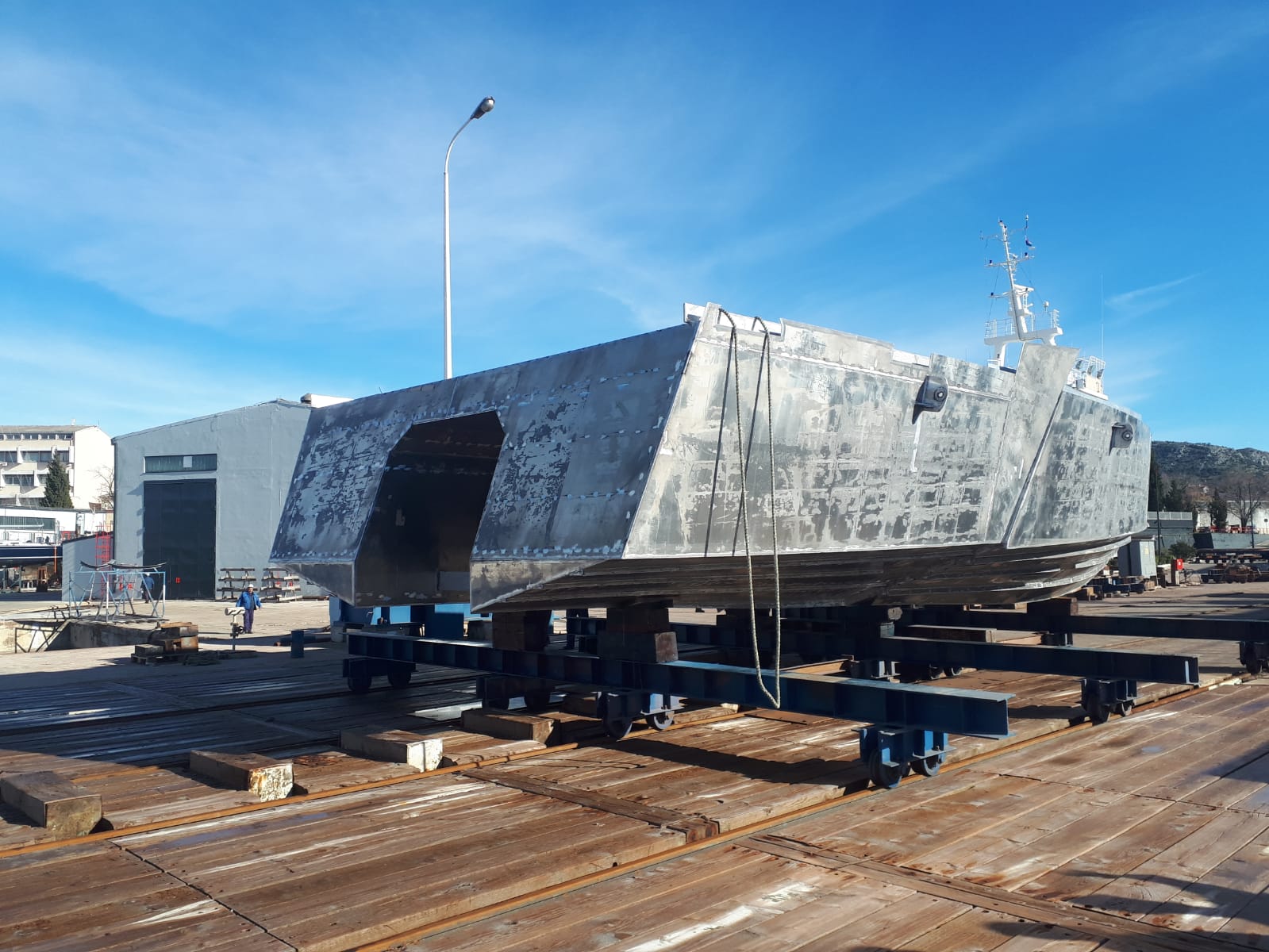

HULL SHAPE
 Deep-V planing-AIR STEP HULL
NAVAL ARCHITECTURE:  OMNIMONT d.o.o.

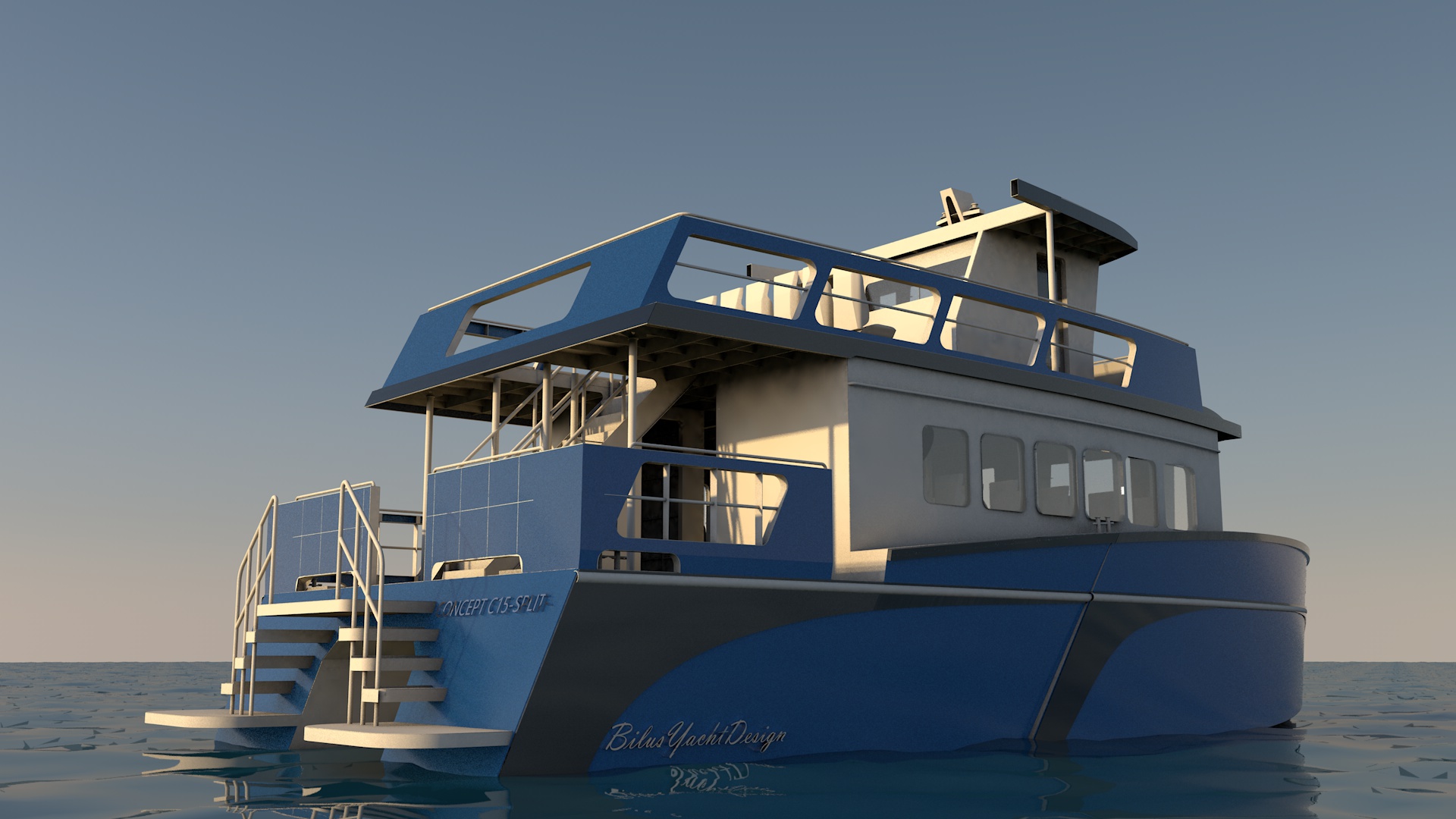

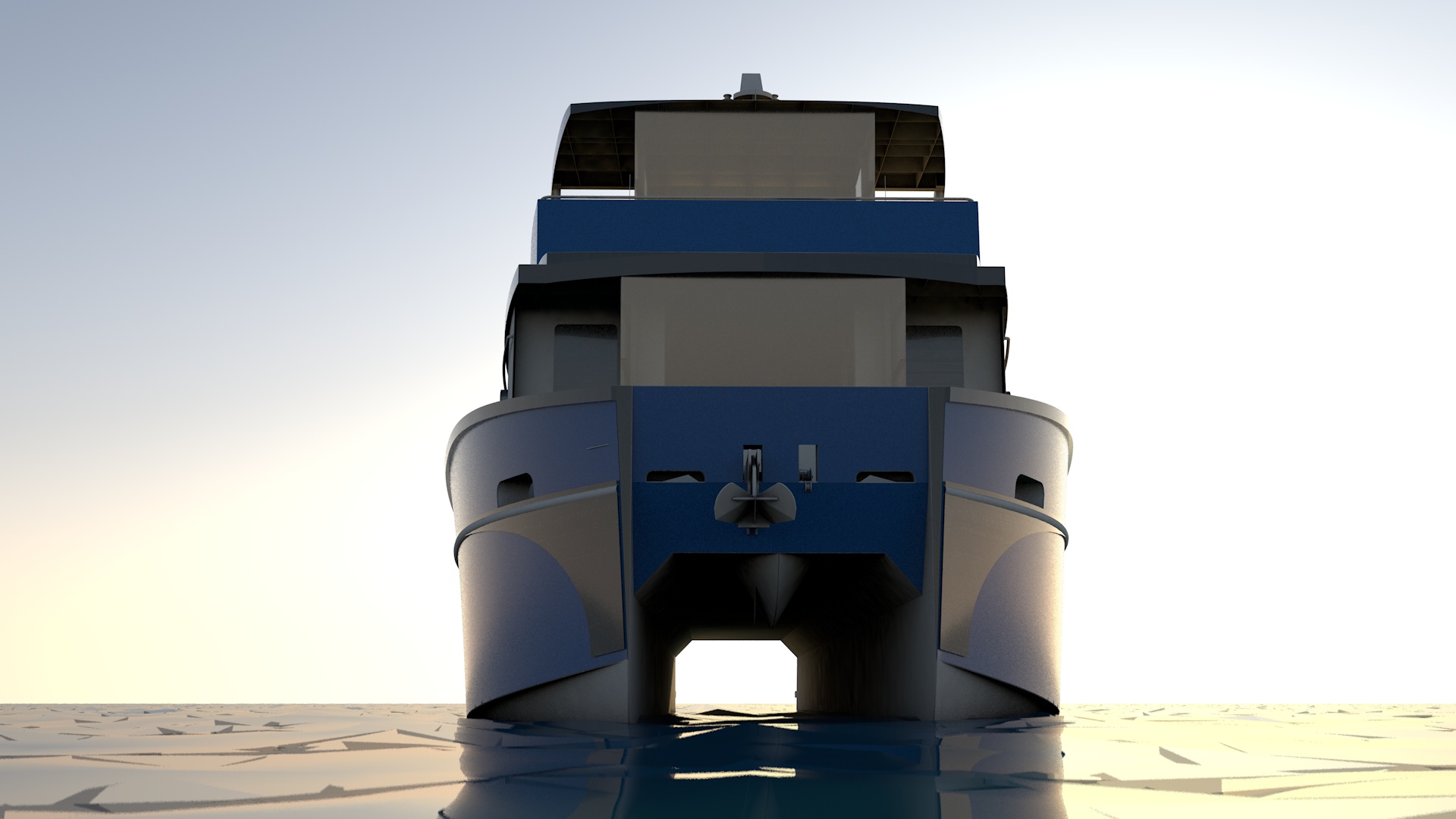

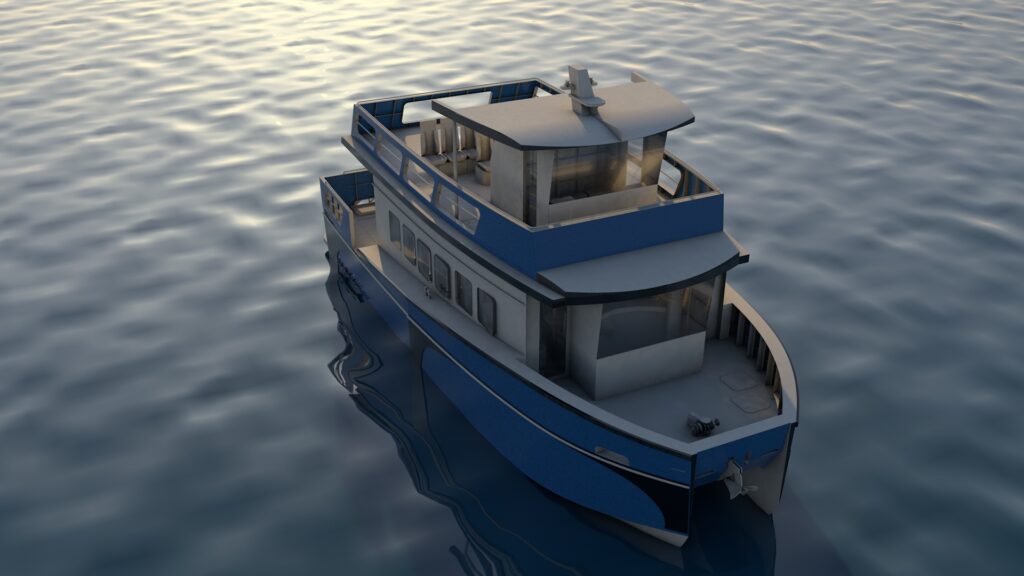

DESIGN: Bilus Yacht Design
TYPE AND ASSIGNMENT OF THE BOAT
Catamaran passenge rferry –The hullofthe boath as modern deep V form which enables the maintaining of speed and navigation under unfavourable weather conditions.
