MAIN DIMENSIONS
Lengthoverall                      15.55 m
Breadthoverall                     06.70 m
Moulded draft                      1.50 m
Displacement                      30.00 t


PROPULSION AND POWER
MainEngines                        2 x CUMMINS QSC 8.3; 442kW@3000 rpm
Propellers                             2 x 4 blade (fixedpitch)
AuxiliaryEngines               1x CUMMINS ONAN 11kW

LOAD CAPACITY
Passengers                          12
Deadweight                        20t
Maximumload                    20t

SERVICE PERFORMANCE
Top Speed                          @100 RPM     25knots
Cruising Speed                @90 RPM       20knots
Range                                     300 NM

CONSTRUCTION
Plates/profiles                    5083/6082                  series aluminium alloy

CLASSIFICATION
CRS/LR                                     IMO CRS C6 6 50A1+HULL+M1 AUT3

CAPACITY ARRANGEMENT
Fuel tank                              2×600 litres
Fresh water tank            1×500 litres
Black water tank             1×500 litres

HULL SHAPE
Deep-V planing-AIR STEP HULL

NAVAL ARCHITECTURE
OMNIMONT d.o.o.

DESIGN
Bilus Yacht Design

TYPE AND ASSIGNMENT OF THE SHIP

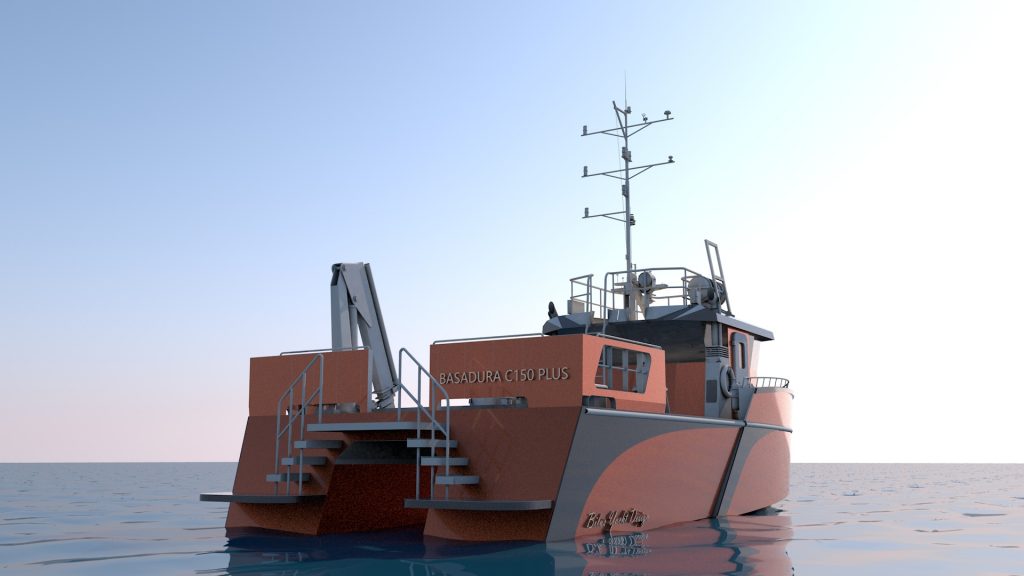

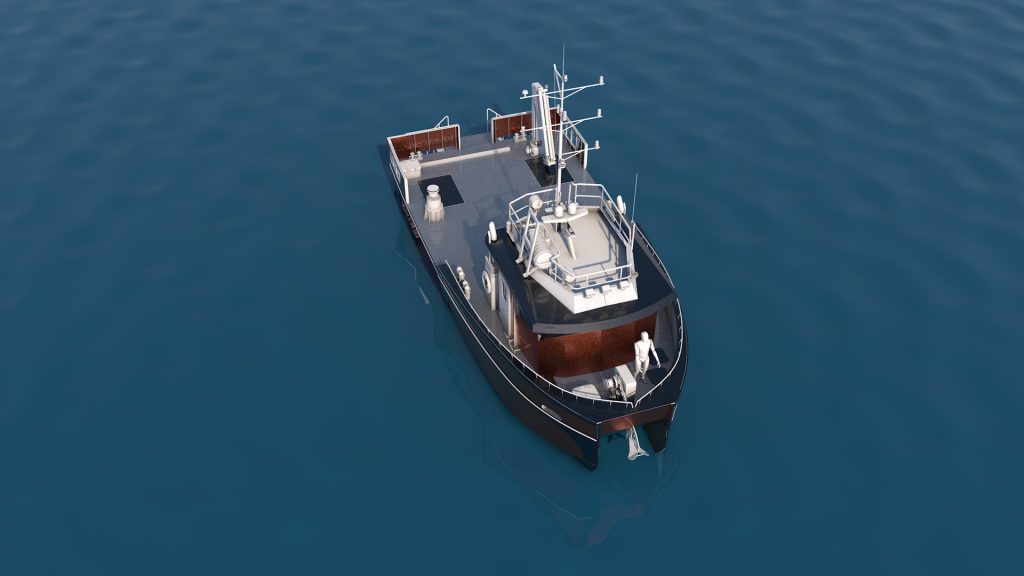

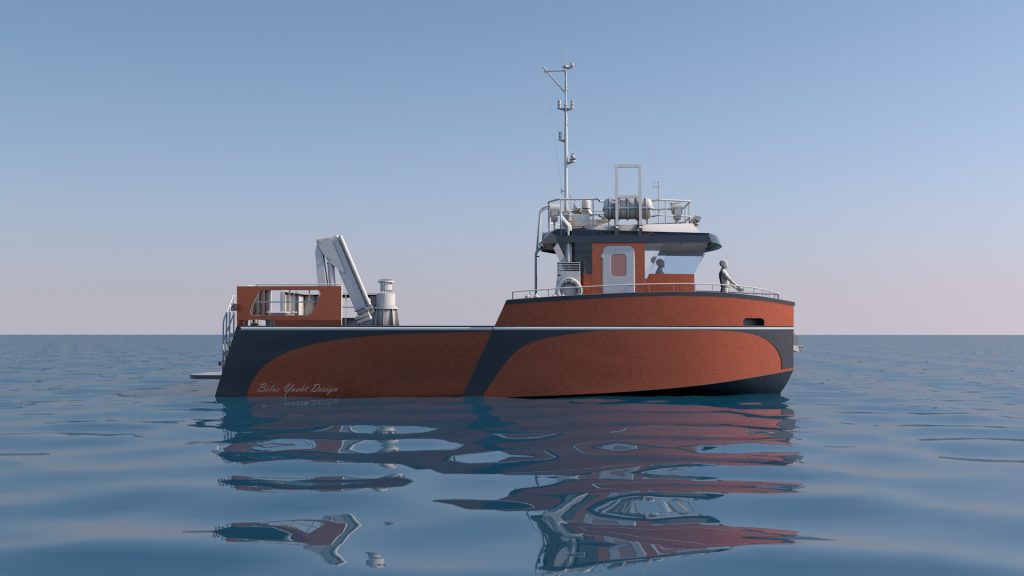

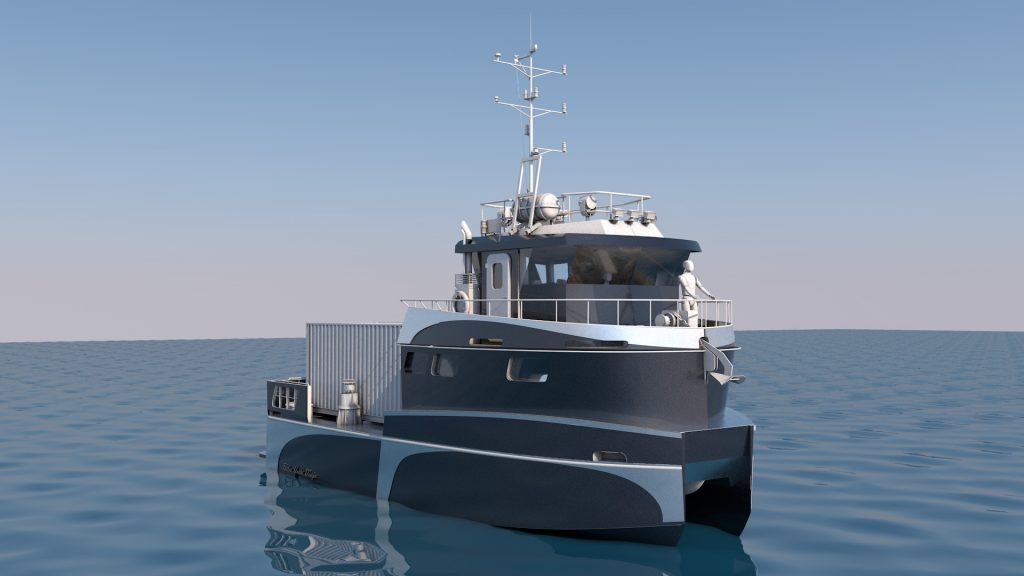

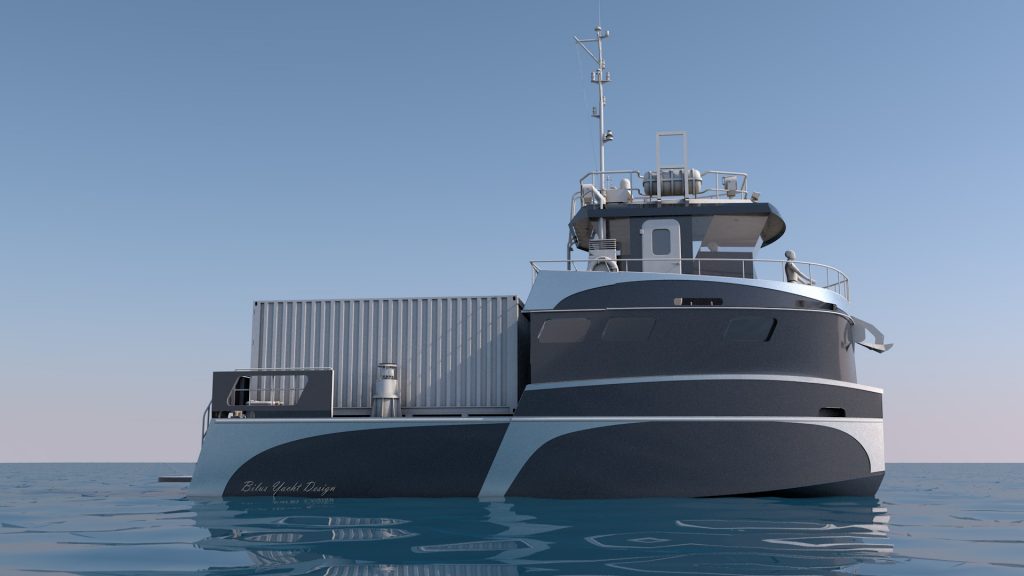

Multi purpose working catamaran –The hull of the boath as modern deep V form which enables the maintaining of speed and navigation under unfavourable weather conditions.
