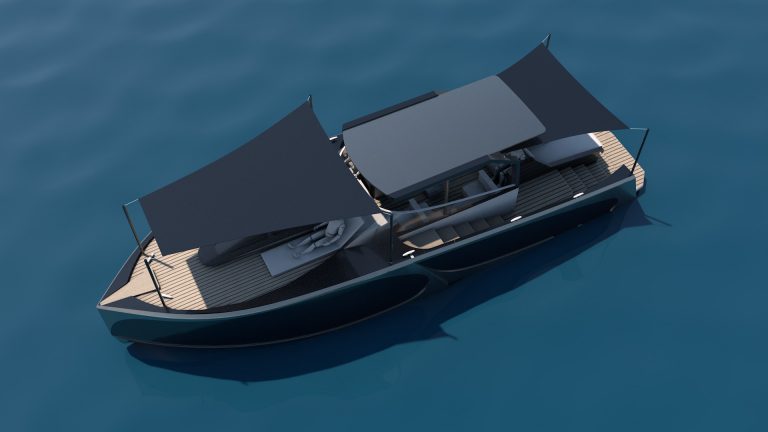

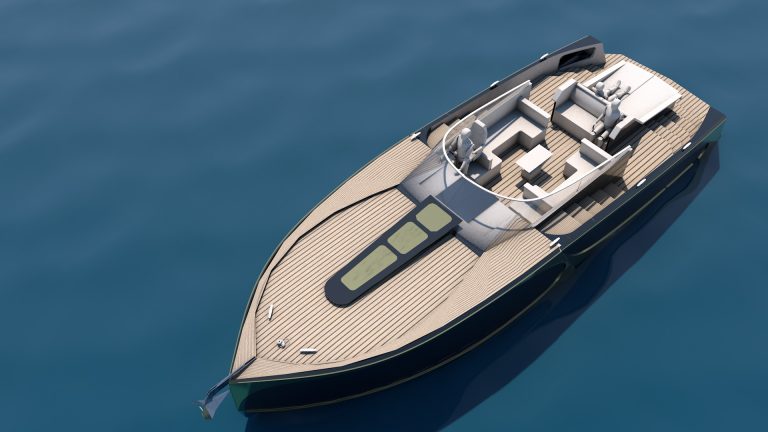

Basadura C45

MAIN DIMENSIONS
Lengthoverall                    15.30 m
Breadthoverall                  4.78 m
Moulded draft                    0.80 m
Displacement                     16.00 t
PROPULSION AND POWER
MainEngines                       1 x CUMMINS QSC 8.3; 442kW@3000 rpm
Propellers                             1 x 4 blade (fixedpitch)
AuxiliaryEngines               1x CUMMINS ONAN 11kW
LOAD CAPACITY
Passengers                          12
Deadweight                        2.5 t
Maximumload                   5 t
SERVICE PERFORMANCE
Top Speed                            @100 RPM   26knots
CruisingSpeed                   @90 RPM     24knots
Range                                      200 NM
CONSTRUCTION
Plates/profiles                   5083/6082                series aluminium alloy
CLASSIFICATION
Design category               „B“-OFFSHORE
CAPACITY ARRANGEMENT
Fuel tank                                1000 litres
Fresh water tank                400 litres
Black water tank                 380litres
HULL SHAPE
Deep-V planing-AIR STEP HULL
NAVAL ARCHITECTURE
OMNIMONT d.o.o.
DESIGN
Bilus Yacht Design
TYPE AND ASSIGNMENT OF THE BOAT
Luxury Yacht  for personal use-The hull of the boat has modern deep V form which enables the maintaining of speed and navigation under unfavourable weather conditions.
