MAIN DIMENSIONS
Length overall 10.85 m
Breadth overall 03.85 m
Moulded draft 0.60 m
Displacement 8.00 t
PROPULSION
Main Engines 1 x INBOARD CUMMINS QSB 6.7; 313kW@3000 rpm
Propellers 1 x 4 blade (fixed pitch)
(OPTIONS: 2 x OUTBOARD YAMAHA 250HP)
LOAD CAPACITY
Passengers 12
Deadweight 5.0 t
Maximum load 5.0 t
SERVICE PERFORMANCE
Top Speed @100 RPM 30 knots
Cruising Speed @90 RPM 24 knots
Range 200 NM
CONSTRUCTION
Plates/profiles 5083/6082 series aluminium alloy
CLASSIFICATION
Design category „B“-OFFSHORE
CAPACITY ARRANGEMENT
Fuel tank 600 litres
Fresh water tank 200 litres
Black water tank 200 litres
HULL SHAPE
Deep-V planing-AIR STEP HULL
NAVAL ARCHITECTURE
OMNIMONT d.o.o.
DESIGN
Bilus Yacht Design

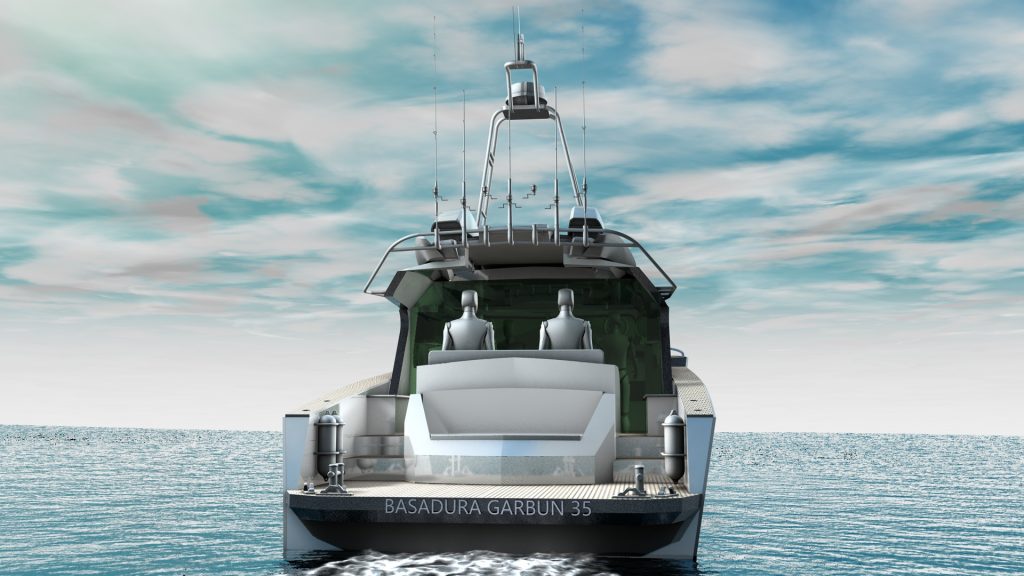

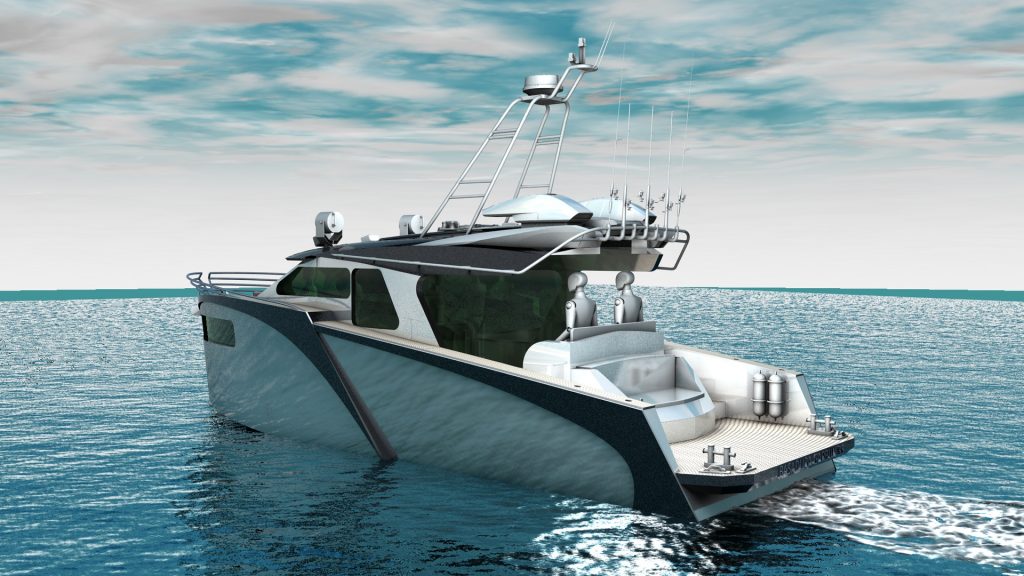

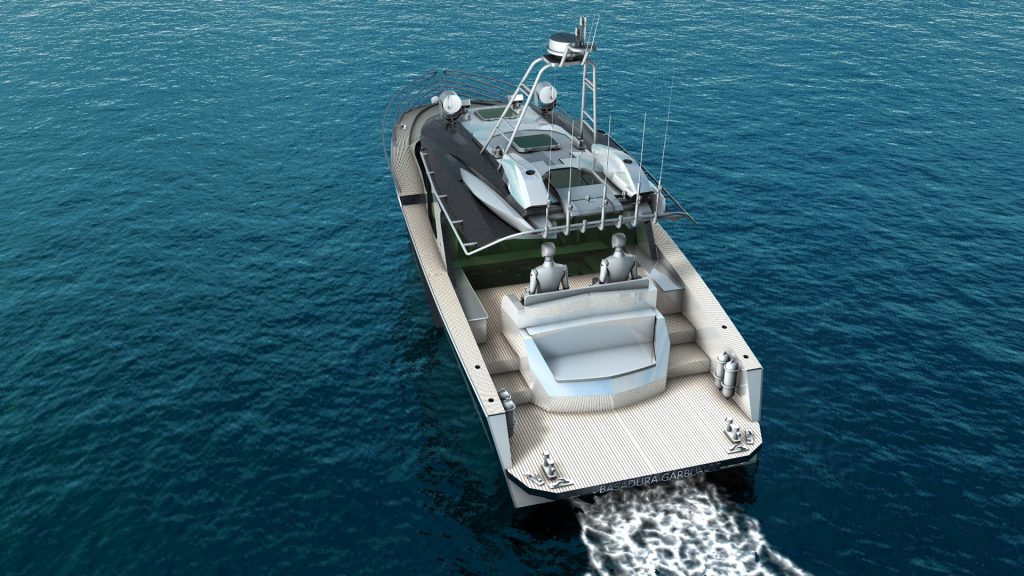

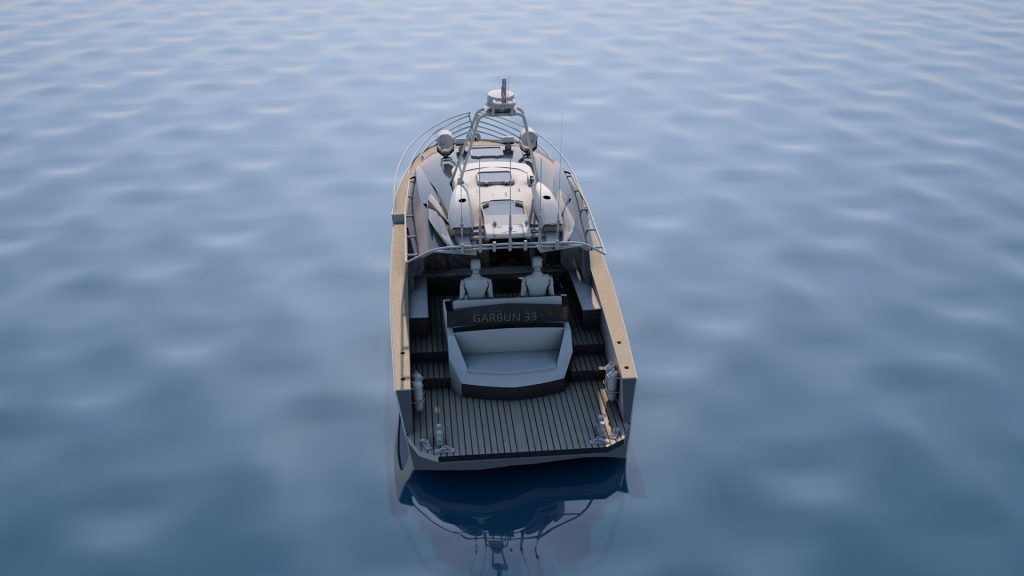

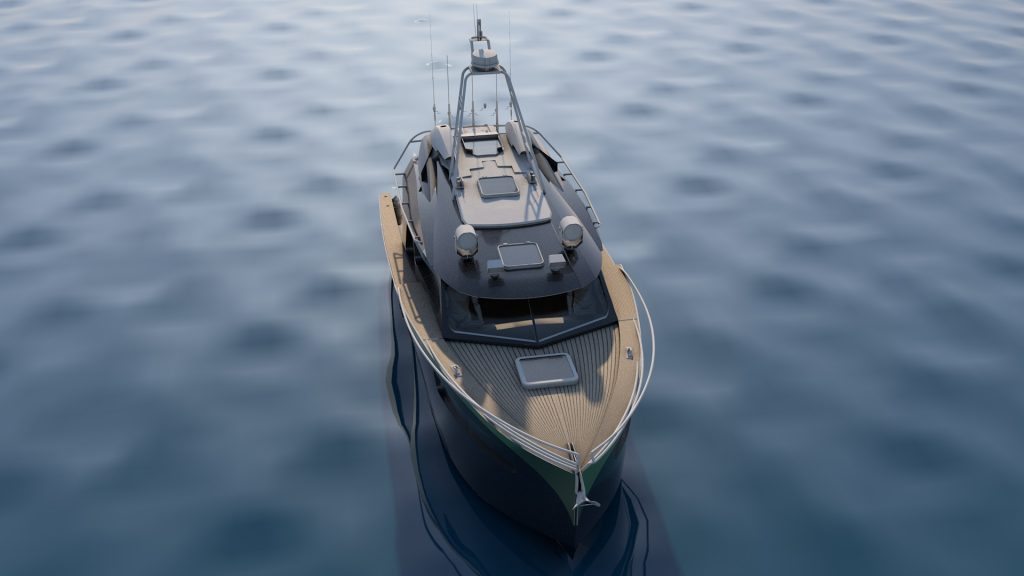

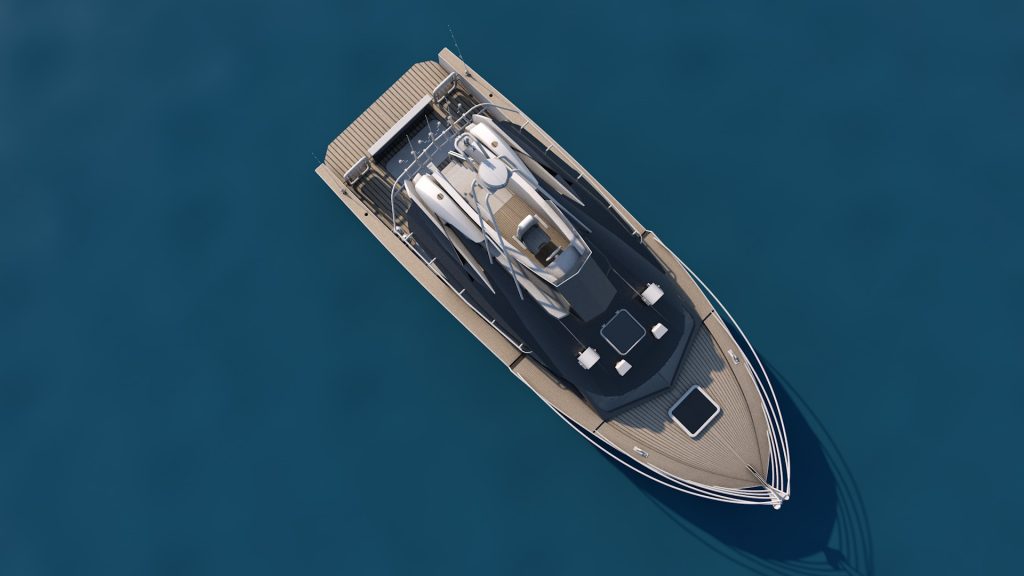

TYPE AND ASSIGNMENT OF THE BOAT

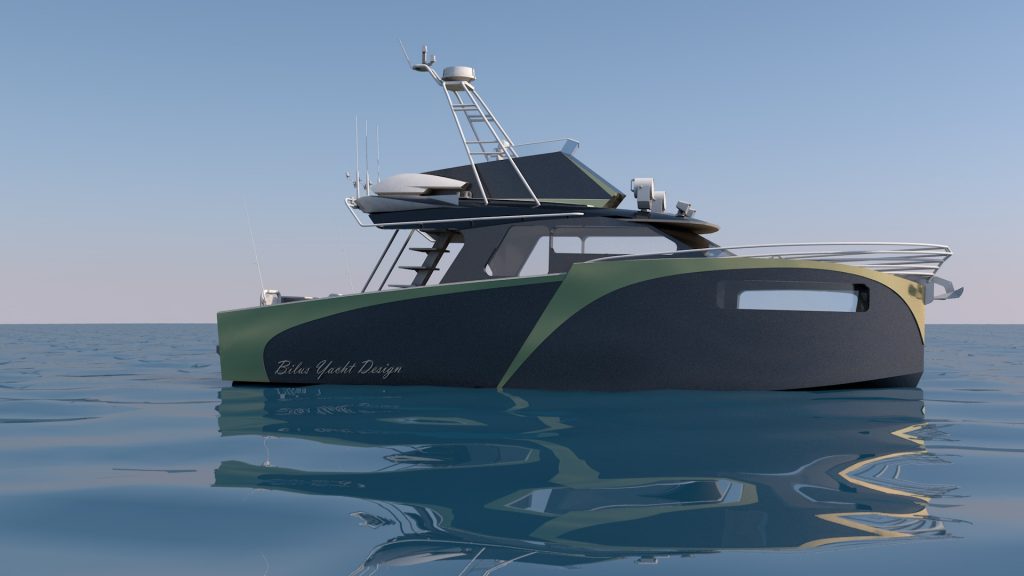

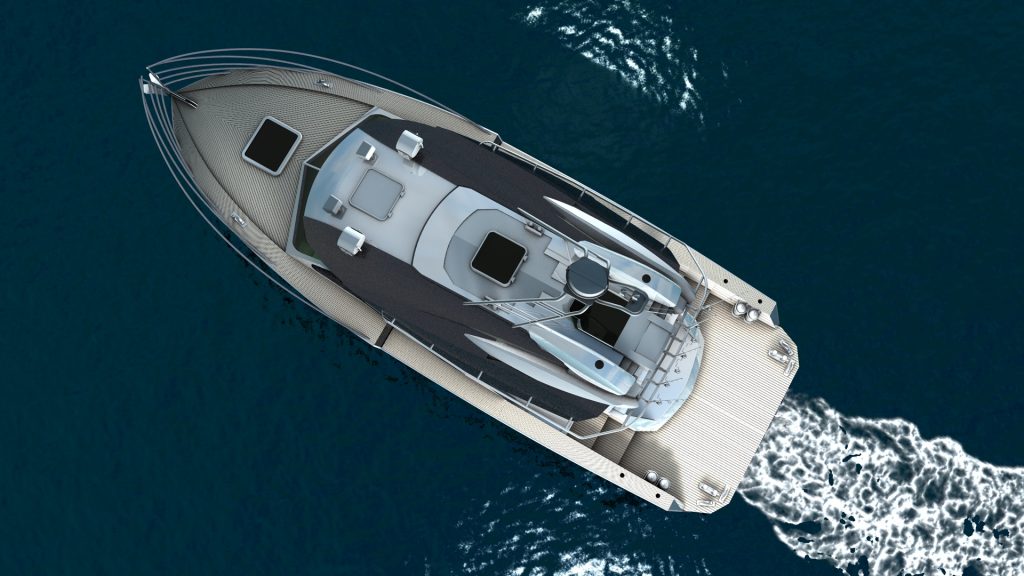

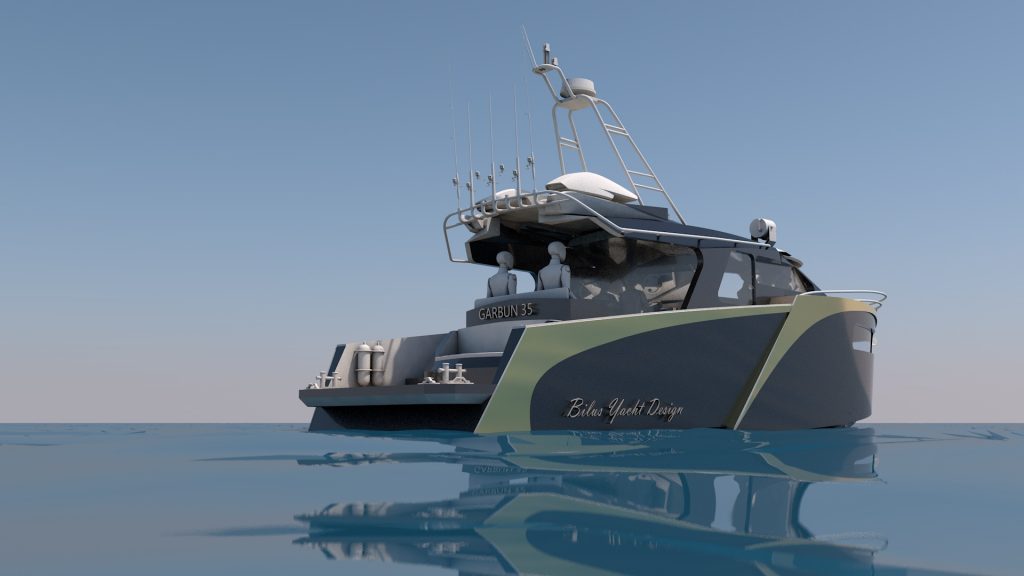

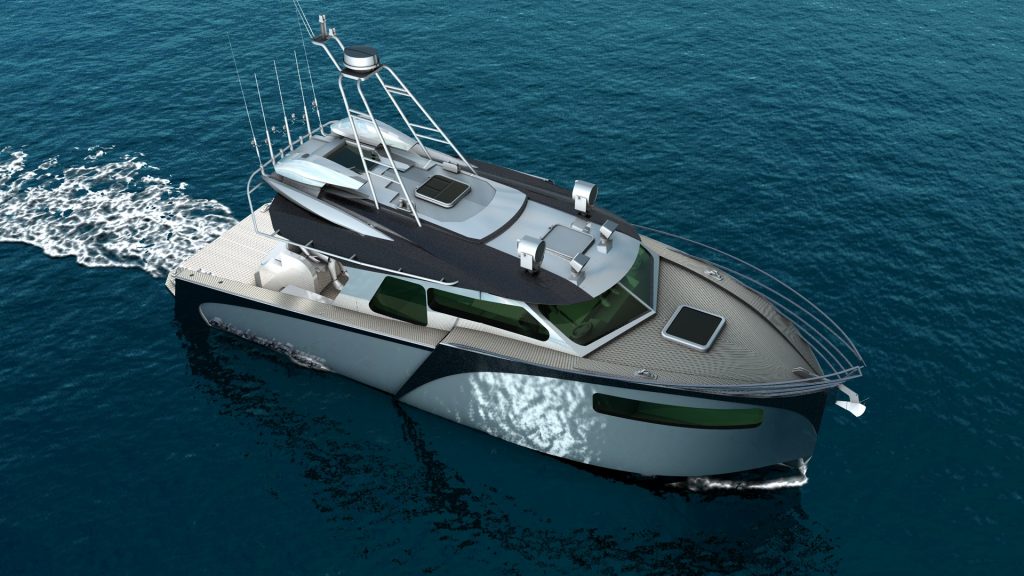

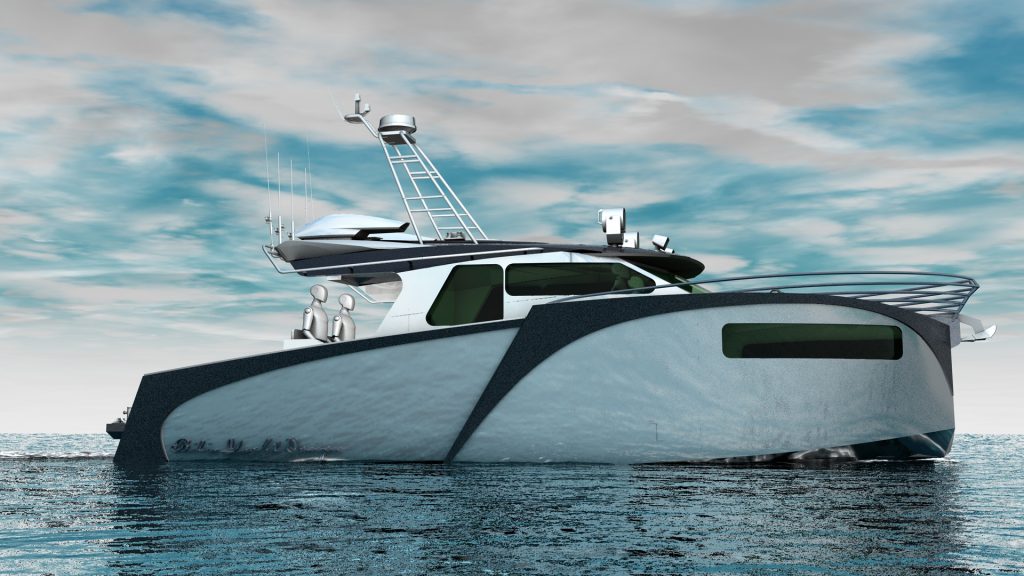

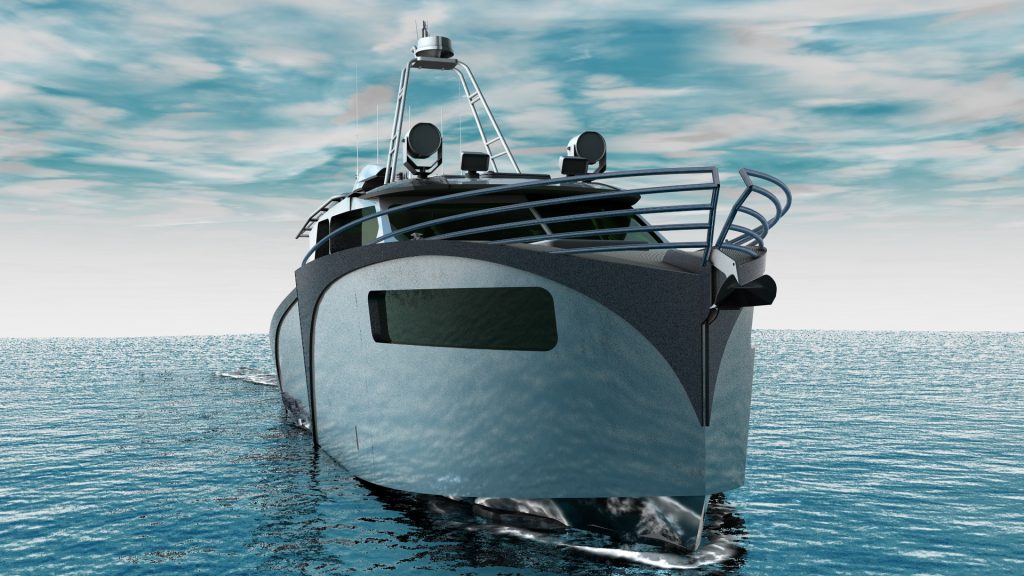

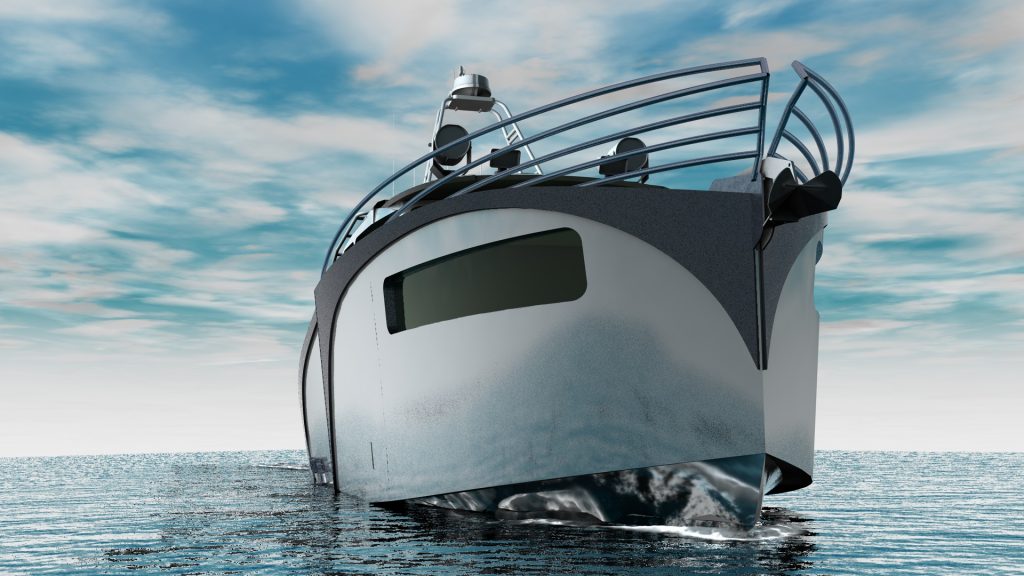

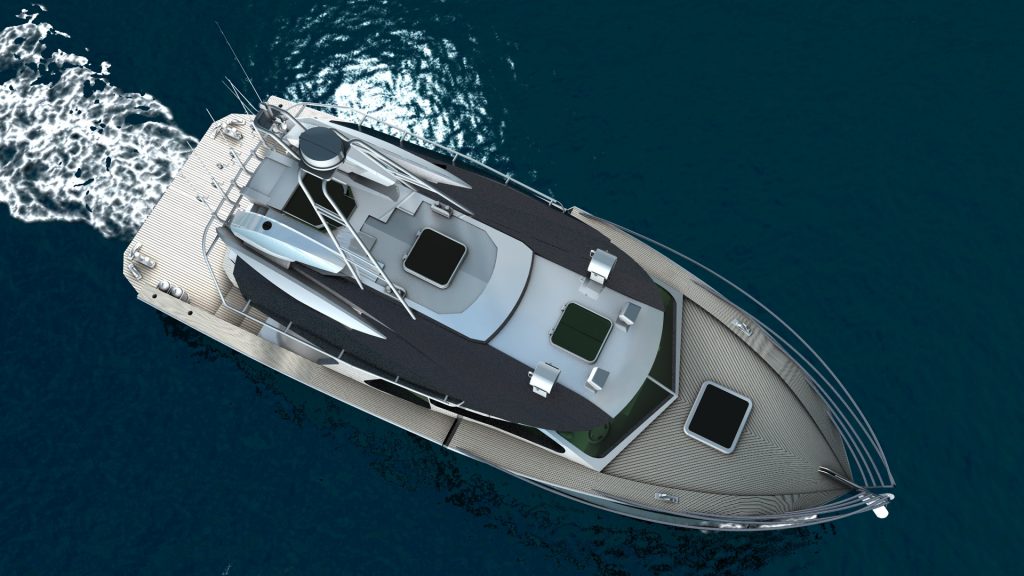

Working and pleasure boat –The hull of the boat has modern deep V form,
unique the Garbun 35 was designed to make combination for pleasure and
sport fishing moment.
