MAIN DIMENSIONS
Length overall                     14.75 m
Breadth overall                   06.10 m
Moulded draft                    1.50 m
Displacement                     ~ 55.00 t

PROPULSION
Main Engines                       1 x CUMMINS QSL 8.9; 336kW@2100 rpm
Propellers                             1 x 4 blade (fixedpitch)

LOAD CAPACITY
Passengers                            06
Dead weight                      ~25 t
Maximum load                   ~25 t

SERVICE PERFORMANCE
Top Speed                           @100 RPM   12.0knots
Working Speed               @90 RPM     8.0knots
Pull                                         @4 kn                        5.0t
Range                                    500 NM

CONSTRUCTION
Plates/profiles                  5083/6082                 (Options: STEEL)

CLASSIFICATION
Design category                „B“-OFFSHORE

CAPACITY ARRANGEMENT
Fuel tank                              3000 litres
Fresh water tank             4000 litres
Black water tank              1000 litres
Fish hold                               20  m³

HULL SHAPE
Shallow-V planing-AIR STEP HULL

NAVAL ARCHITECTURE
OMNIMONT d.o.o.

DESIGN
Bilus Yacht Design

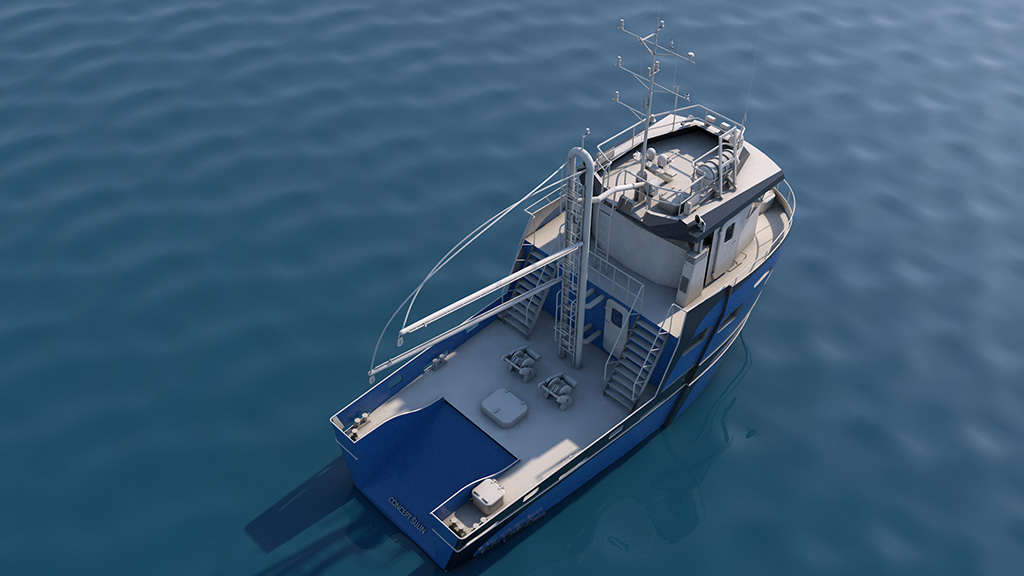

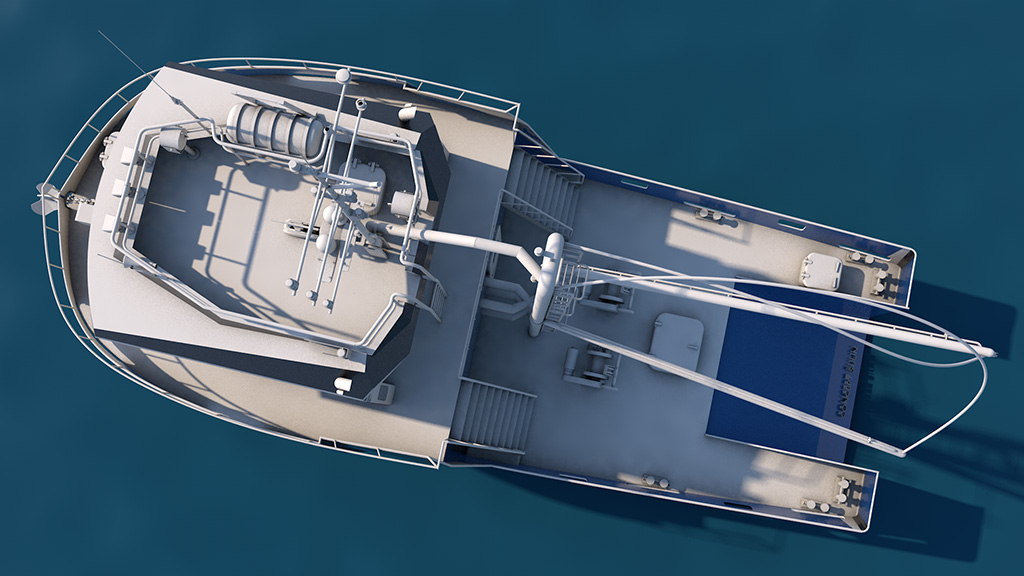

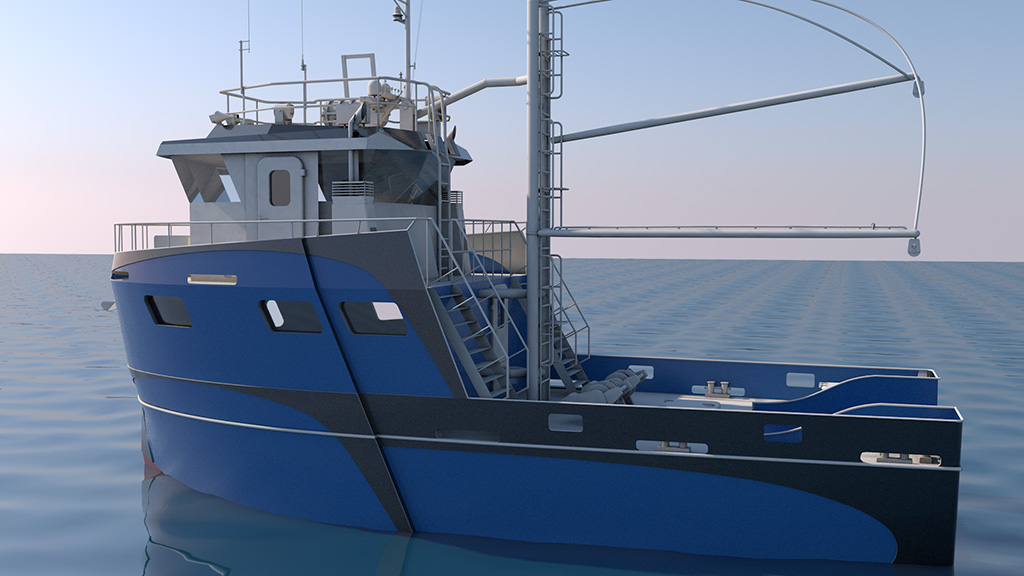

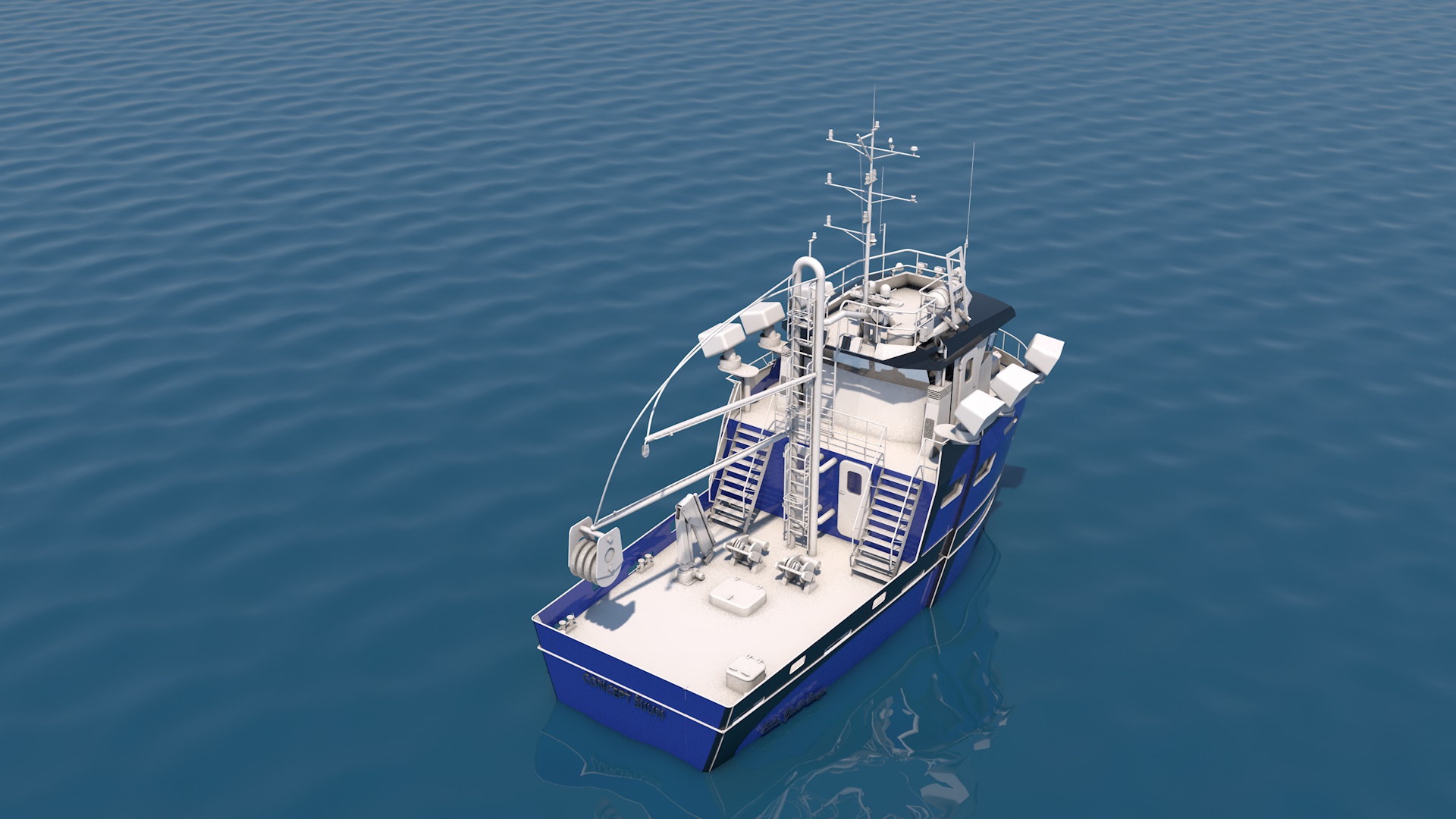

TYPE AND ASSIGNMENT OF THE BOAT
Pursese in ingfitted with insulated fish space for storage of frozen catch Stern trawling designing for bottom and pelagic trawling and fitted with a refrigerated fish space
