MAIN DIMENSIONS
Lengthoverall                      14.50 m
Breadthoverall                    05.85 m
Moulded draft                     1.80 m
Displacement                      48.00 t
PROPULSION
MainEngines                       1 x DOOSAN ; 118kW@2200 rpm
Propellers                             1 x 4 blade (fixedpitch)
LOAD CAPACITY
Passengers                           6
Deadweight                        26 t
Maximumload                   28 t
WORKING LOAD
PALFINGER CRANE      98kN@10m
SERVICE PERFORMANCE
Top Speed                             @100 RPM   8knots
CruisingSpeed                   @90 RPM     6knots
Range                                       90 NM
CONSTRUCTION
Plates/profiles                      Structural steel
CLASSIFICATION
Design category                 „C“-COASTAL
CAPACITY ARRANGEMENT
Fuel tank                                    400 litres
Fresh water tank                   100 litres
Black water tank                    100 litres
HULL SHAPE
Shallow-V planing-AIR STEP HULL
NAVAL ARCHITECTURE
OMNIMONT d.o.o.
DESIGN
Bilus Yacht Design
TYPE AND ASSIGNMENT OF THE BOAT

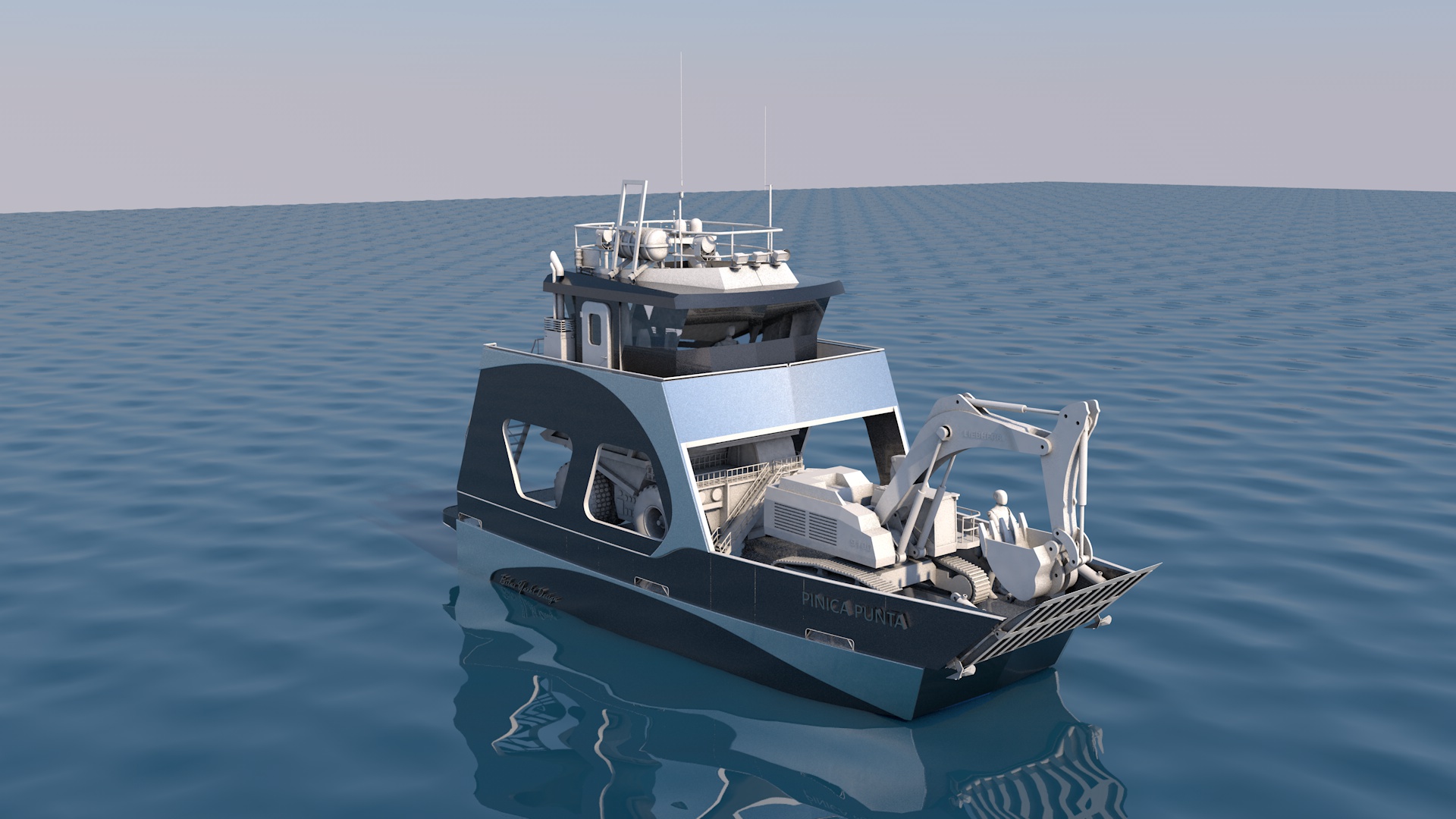

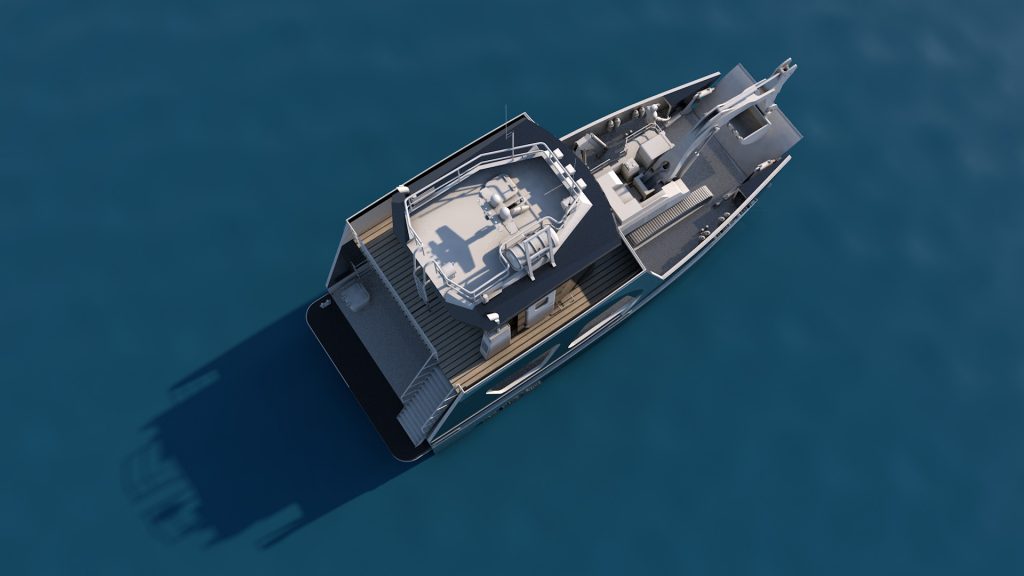

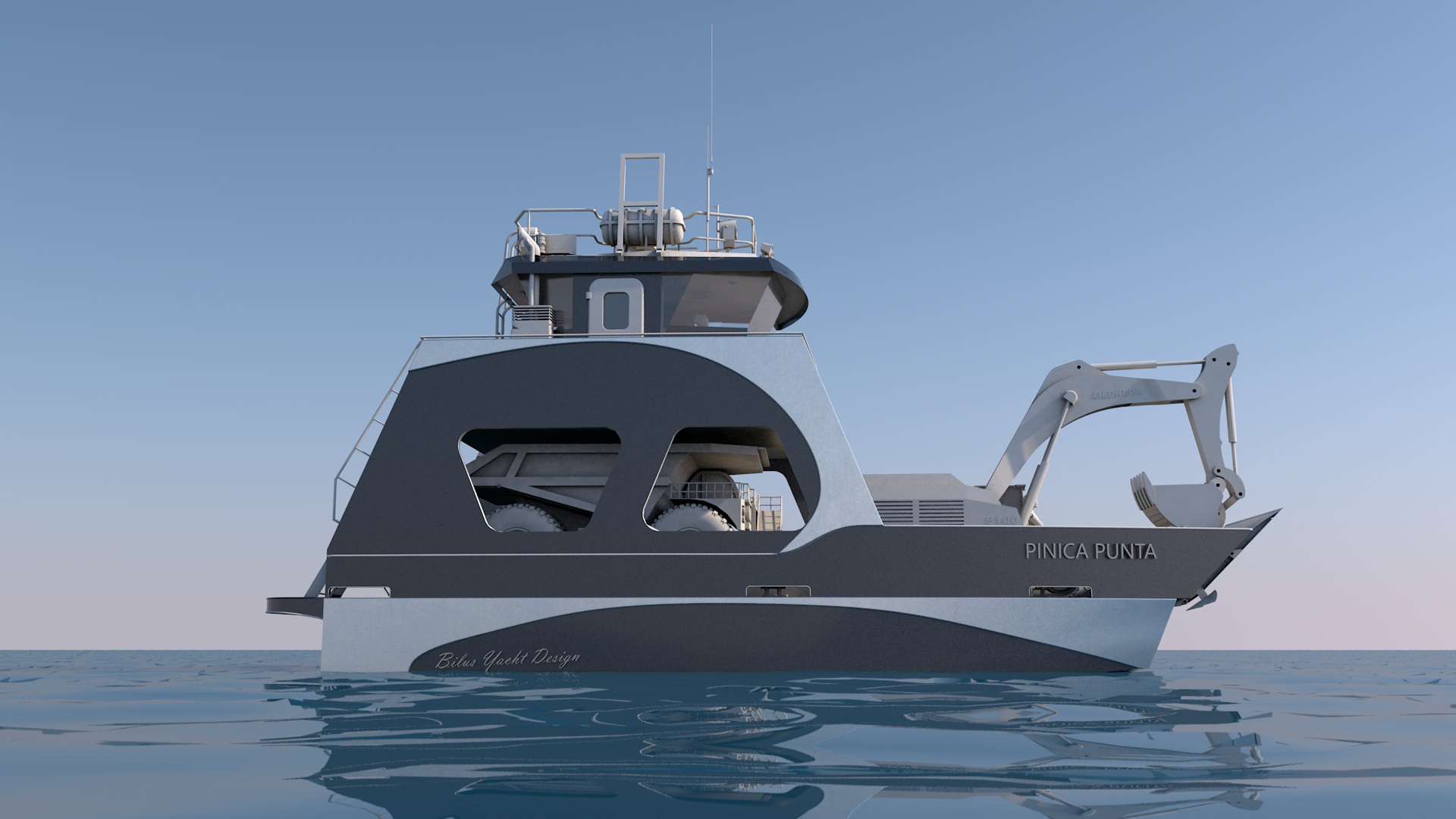

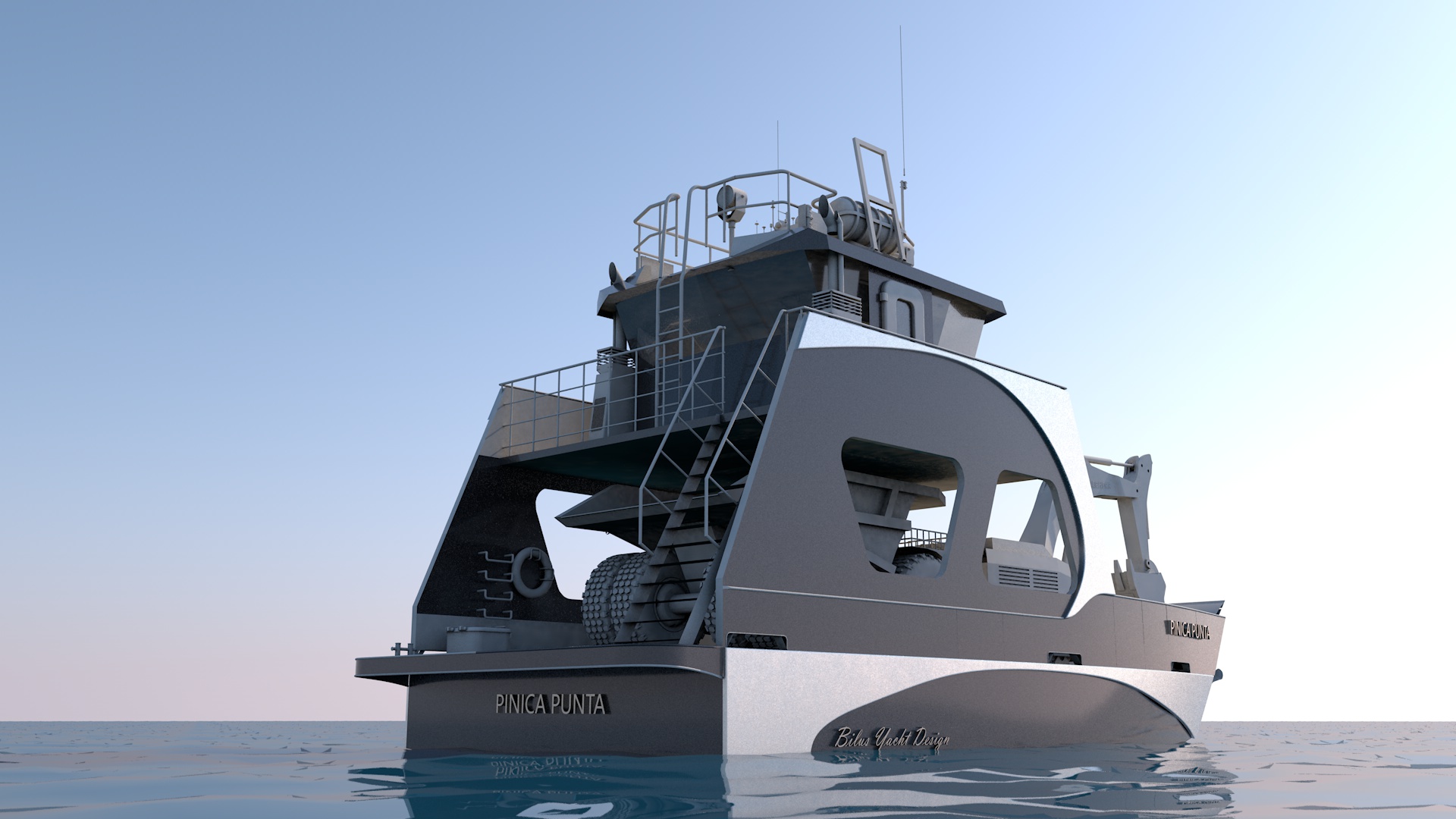

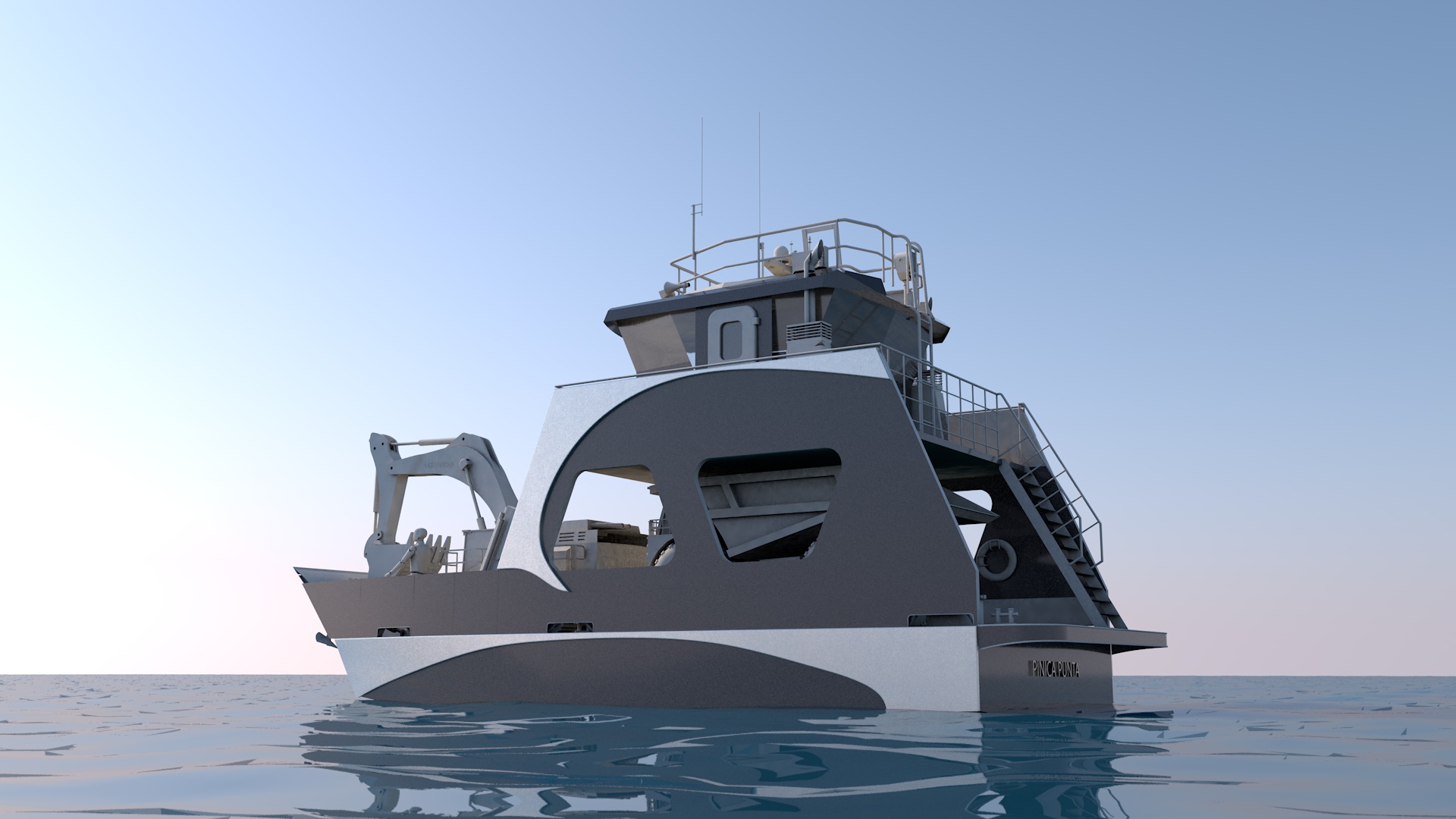

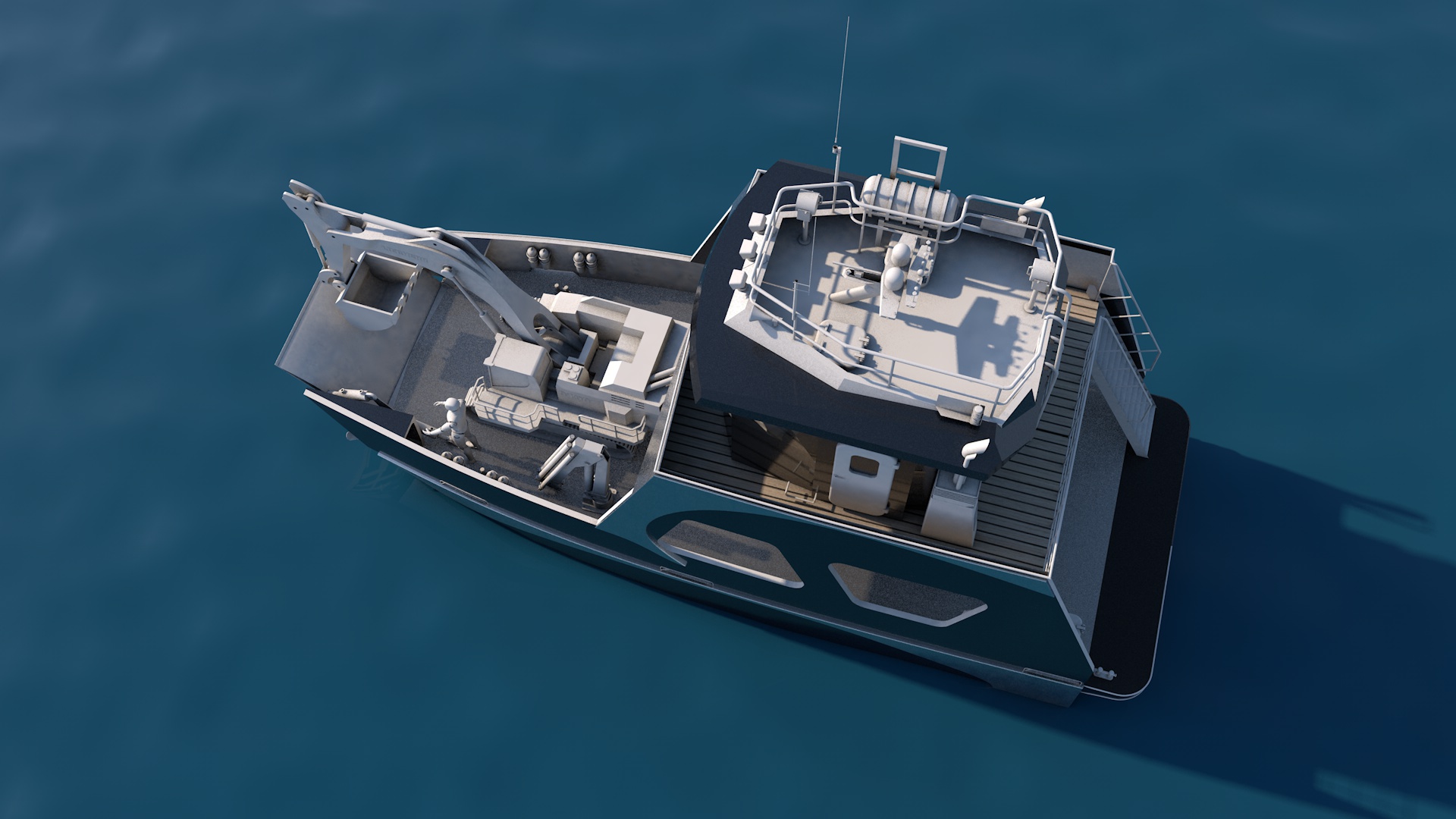

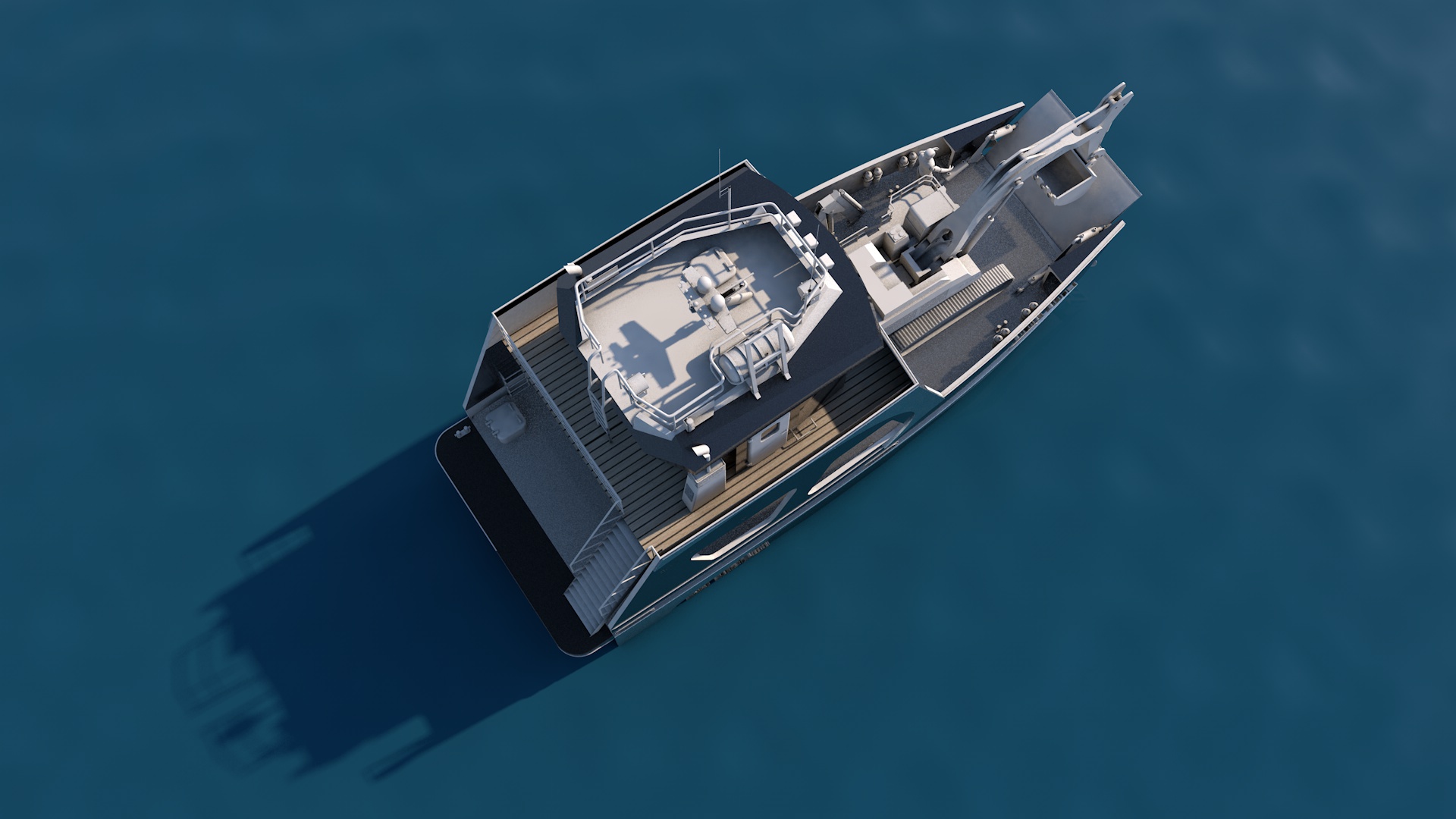

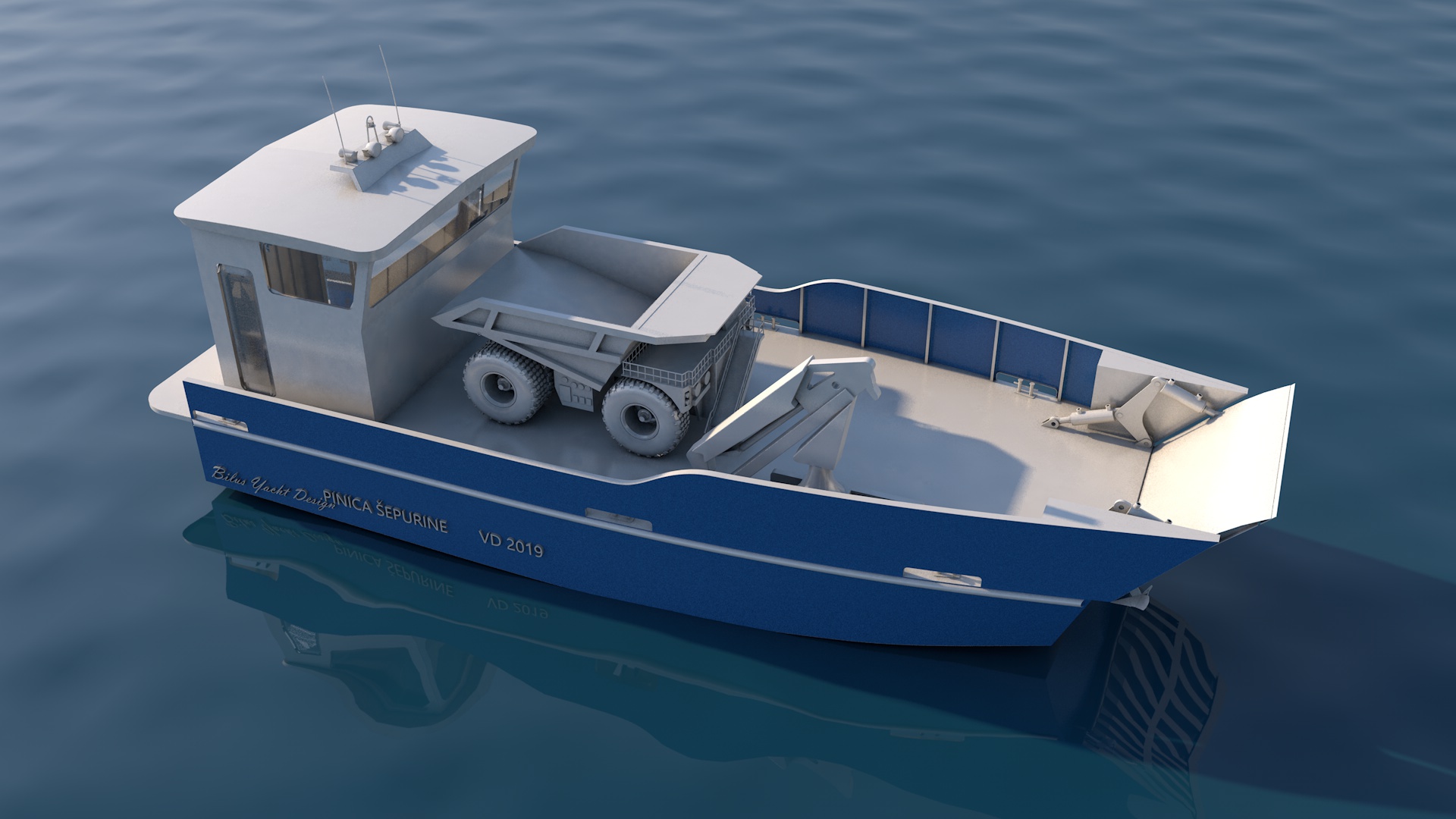

MICRO FERRY/LANDING CRAFT-The hull of the boat has modern displace ment shallow V form which enables the maintaining of speed and navigation under unfavourable weather conditions.
